Exploded View

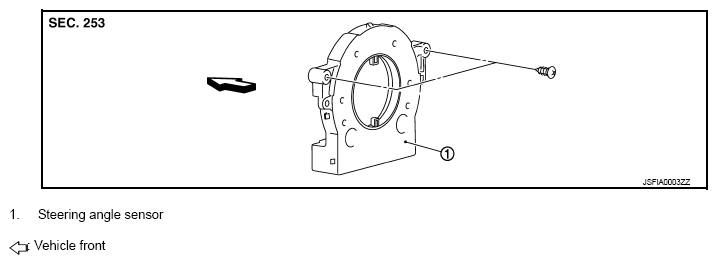

Fig 1: Identifying Steering Angle Sensor
G08446154Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbol marks in the figure.
