Exploded View

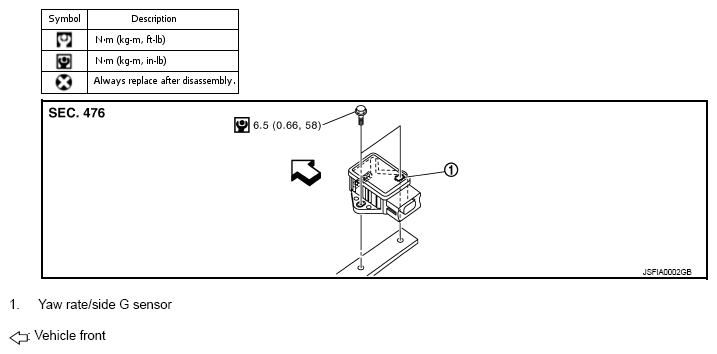

Fig 1: Yaw Rate/Side G Sensor With Torque Specifications
G08446153Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
