VVEL Control Module Connector End View (E15)

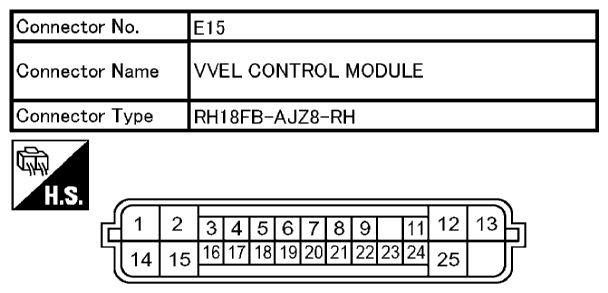

Fig 1: VVEL Control Module Connector End View (E15)
G10675909Courtesy of NISSAN NORTH AMERICA, INC.
