Exploded View

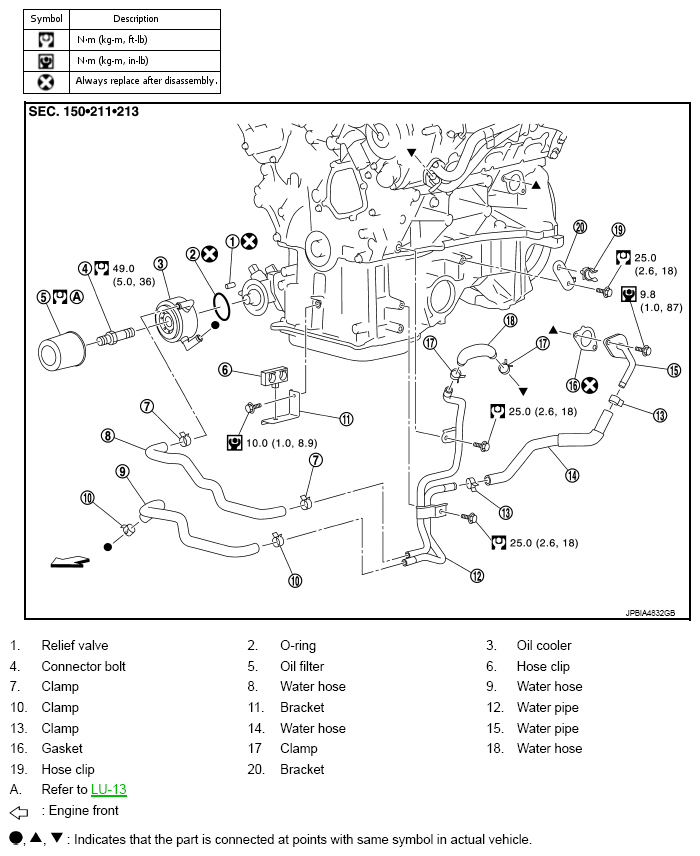

Fig 1: Exploded View Of Oil Cooler With Torque Specifications
G08456843Courtesy of NISSAN NORTH AMERICA, INC.

Refer to RELATION BETWEEN ILLUSTRATIONS AND DESCRIPTIONS for symbols in the figure.
