Component Inspection

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-I

Turn ignition switch OFF.
Disconnect intake valve timing control solenoid valve harness connector.

Check resistance between intake valve timing control solenoid valve terminals as follows.

Terminals	Resistance
1 and 2	7.0 - 7.7 Ω [at 20°C (68°F)]
1 or 2 and ground	∞Ω (Continuity should not exist)

Is the inspection result normal?

YES: GO TO 2.

NO: Replace malfunctioning intake valve timing control solenoid valve. Refer to "EXPLODED VIEW ".

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-II
1. Remove intake valve timing control solenoid valve. Refer to "EXPLODED VIEW ".
2. Provide 12 V DC between intake valve timing control solenoid valve terminals 1 and 2, and then interrupt it. Check that the plunger moves as shown in the figure.
  CAUTION: Do not apply 12 V DC continuously for 5 seconds or more. Doing so may result in damage to the coil in intake valve timing control solenoid valve.

  NOTE: Always replace O-ring when intake valve timing control solenoid valve is removed.

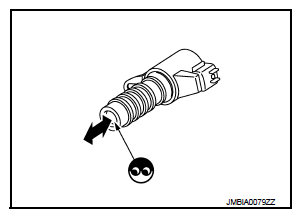

  Fig 1: Checking Intake Valve Timing Control Solenoid Valve Plunger Movement
  Courtesy of NISSAN NORTH AMERICA, INC.

  Is the inspection result normal?

  YES: INSPECTION END

  NO: Replace malfunctioning intake valve timing control solenoid valve. Refer to "EXPLODED VIEW ".
