Multi Av System: Wiring Diagram

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

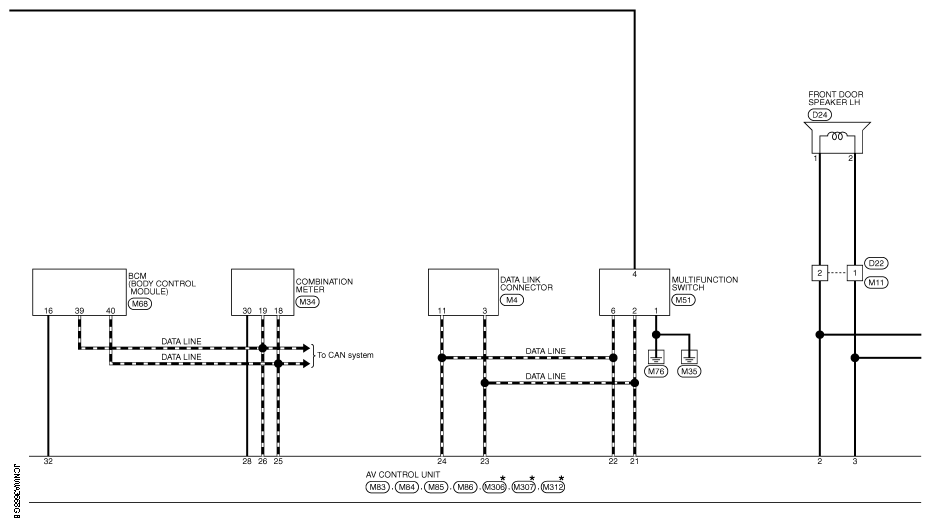

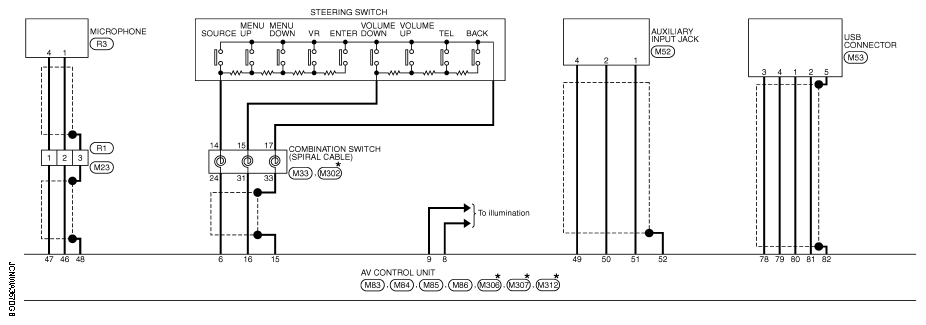

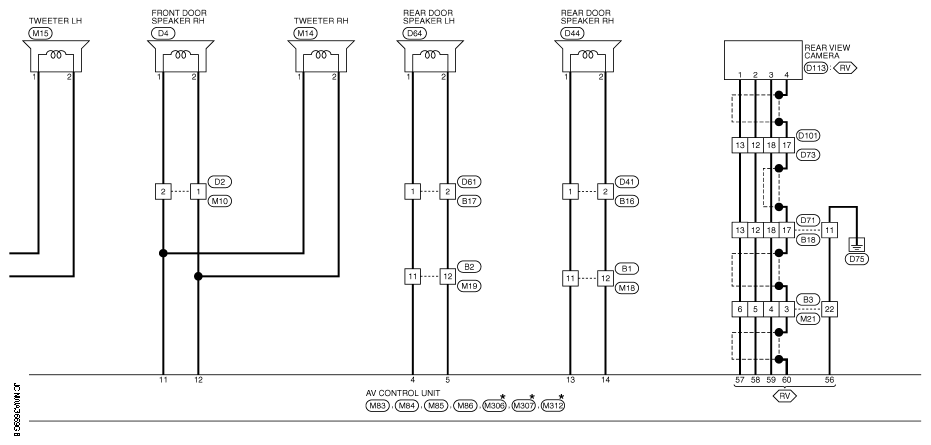

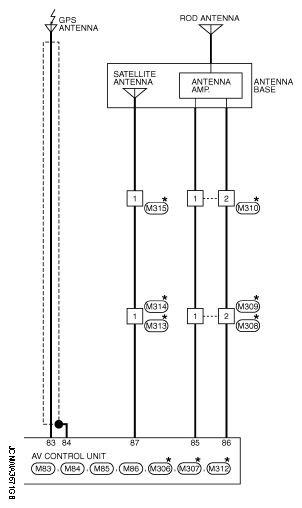

Fig 1: Multi AV System - Wiring Diagram (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Multi AV System - Wiring Diagram (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Multi AV System - Wiring Diagram (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Multi AV System - Wiring Diagram (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Multi AV System - Wiring Diagram (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

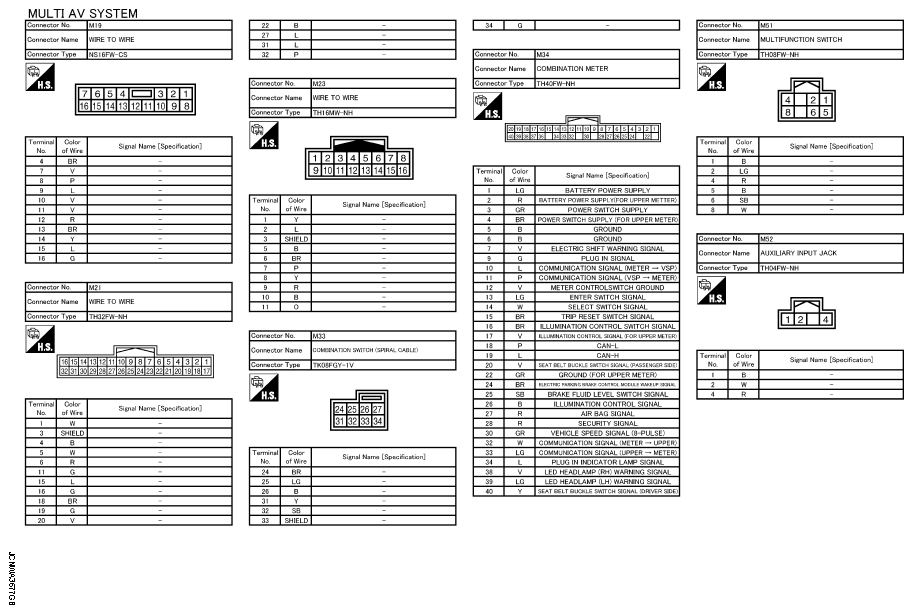

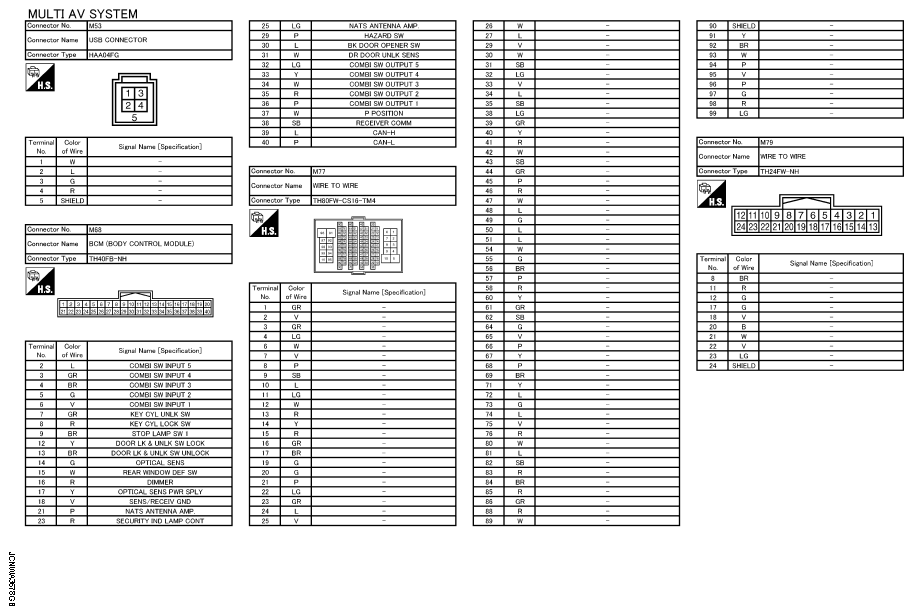

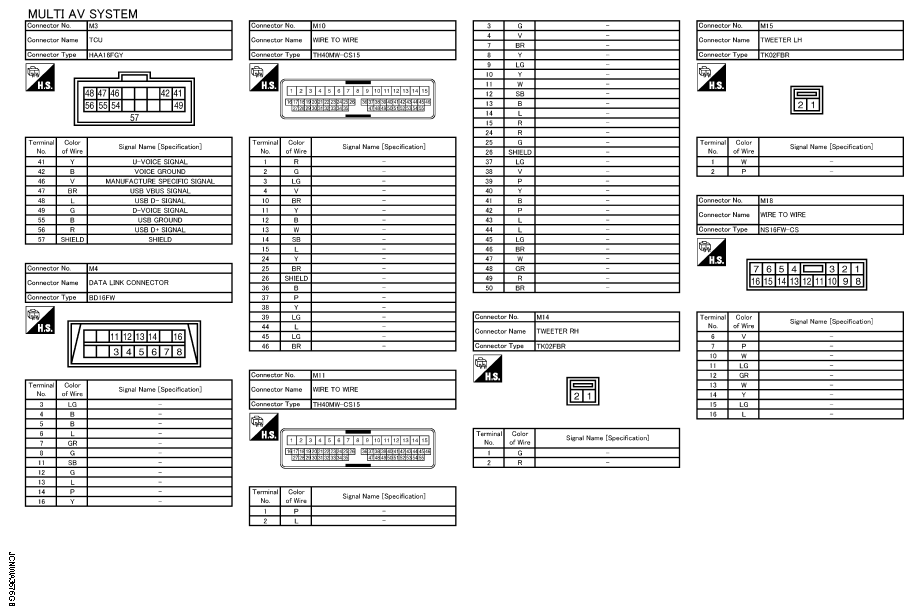

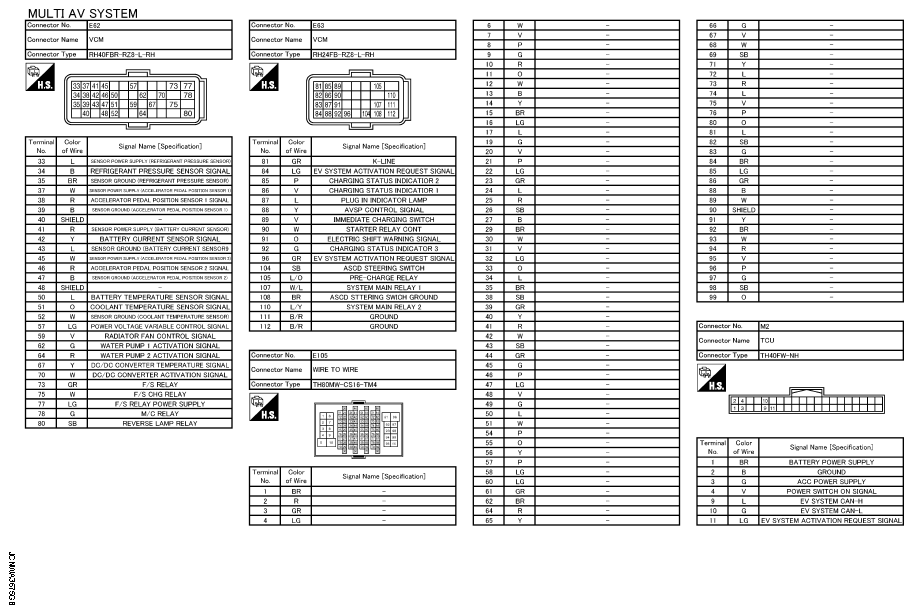

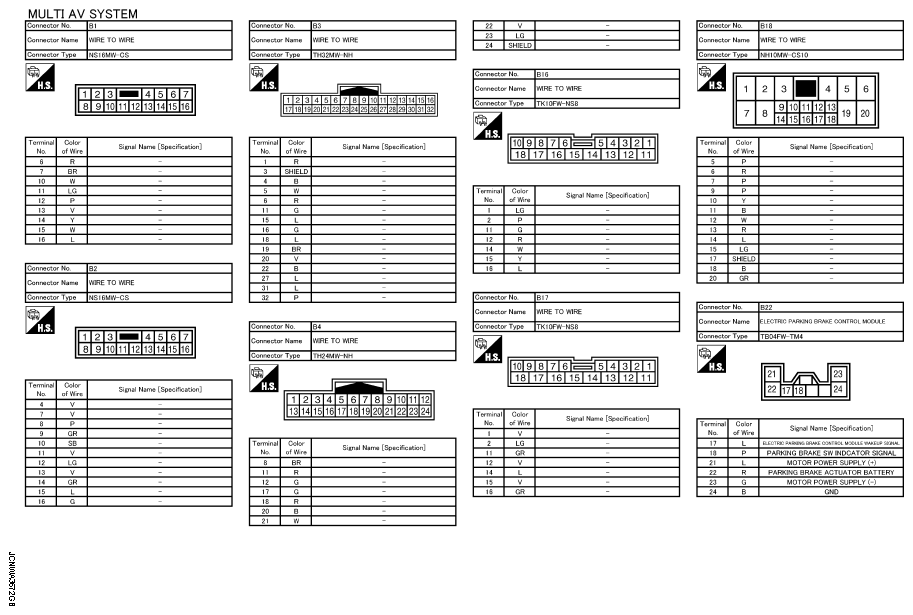

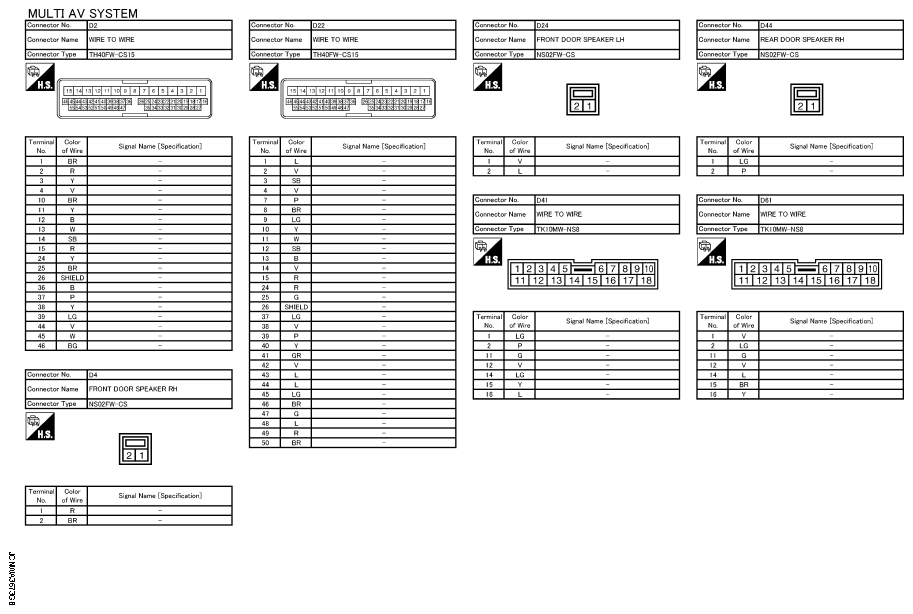

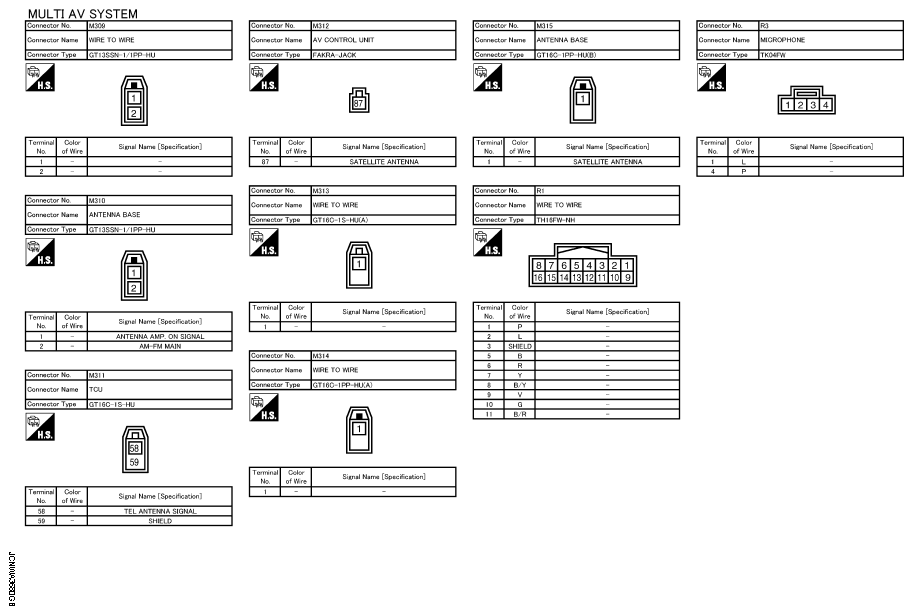

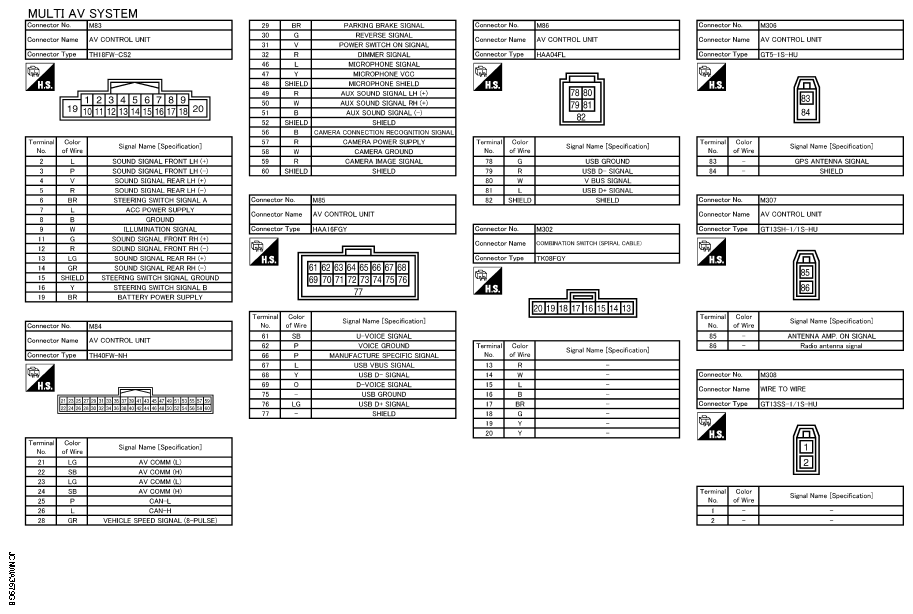

Fig 6: Identifying Multi AV System Connector Terminals (1 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Multi AV System Connector Terminals (2 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Multi AV System Connector Terminals (3 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Multi AV System Connector Terminals (4 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Multi AV System Connector Terminals (5 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Multi AV System Connector Terminals (6 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Multi AV System Connector Terminals (7 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Multi AV System Connector Terminals (8 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Multi AV System Connector Terminals (9 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.
