Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

Remove the NATS antenna amp. Refer to "REMOVAL AND INSTALLATION ".
Remove the power switch (1).
1. Disengage the power switch fixing pawls.
2. Press the power switch to remove it from cluster lid A (2).

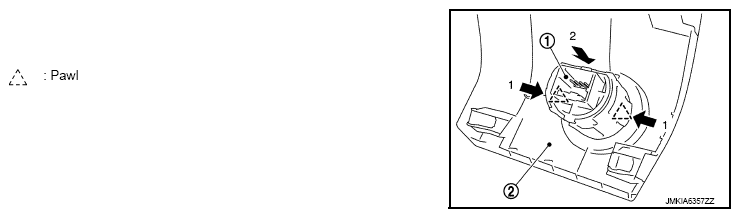

  Fig 1: Removing Power Switch From Cluster Lid
  Courtesy of NISSAN MOTOR CO., U.S.A.
