Symptom Table
WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.
- Perform "Data Monitor" of CONSULT to check for any malfunctioning item.
- Check the malfunction combinations.

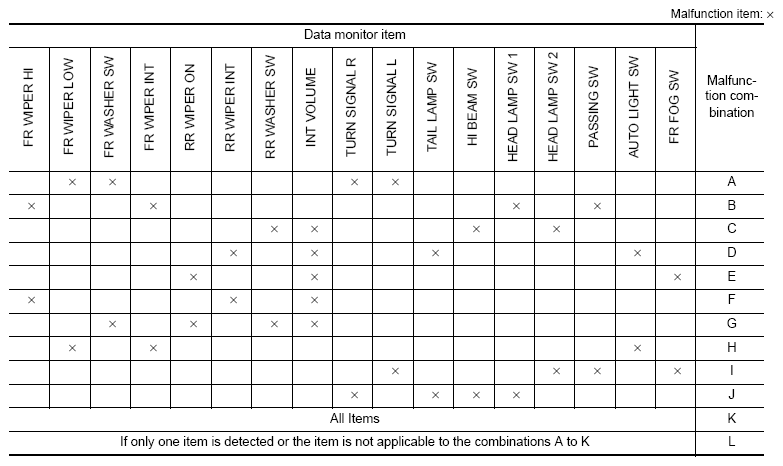

- Identify the malfunctioning part from the agreed combination and repair or replace the part.MALFUNCTION REFERENCE CHART
Malfunction combination Malfunctioning part Repair or replace A Combination switch OUTPUT 1 circuit Inspect the combination switch output circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ". B Combination switch OUTPUT 2 circuit C Combination switch OUTPUT 3 circuit D Combination switch OUTPUT 4 circuit E Combination switch OUTPUT 5 circuit F Combination switch INPUT 1 circuit Inspect the combination switch input circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ". G Combination switch INPUT 2 circuit H Combination switch INPUT 3 circuit I Combination switch INPUT 4 circuit J Combination switch INPUT 5 circuit K BCM Replace BCM. Refer to "REMOVAL AND INSTALLATION ". L Combination switch Replace combination switch.
