Work Support
WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.
INTERIOR ROOM LAMP TIMER SETTING REFERENCE CHART
| Service item | Setting item | Setting | |||
|---|---|---|---|---|---|
| SET I/L D-UNLCK INTCON | On(1) | With the interior room lamp timer function | |||
| Off | Without the interior room lamp timer function | ||||
| ROOM LAMP TIMER SET | MODE 2 | 7.5 sec. | Sets the interior room lamp ON time. (Timer operating time) | ||
| MODE 3(1) | 15 sec. | ||||
| MODE 4 | 30 sec. | ||||

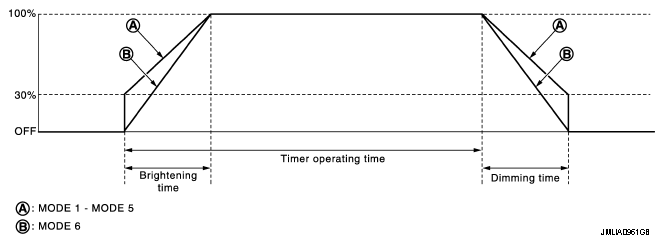

| ROOM LAMP ON TIME SET | MODE 1 | 0.5 sec. | Sets the interior room lamp gradual brightening time.
CAUTION:
Setting cannot be returned to setting at shipment if it is changed once.
|
||
| MODE 2 | 1 sec. | ||||
| MODE 3 | 2 sec. | ||||
| MODE 4 | 3 sec. | ||||
| MODE 5 | 0 sec. | ||||
| Factory setting | Gradually brightens from 0% to 100% brightness in 1 second. | ||||
| ROOM LAMP OFF TIME SET | MODE 1 | 0.5 sec. | Sets the interior room lamp gradual dimming time.
CAUTION:
Setting cannot be returned to setting at shipment if it is changed once.
|
||
| MODE 2 | 1 sec. | ||||
| MODE 3 | 2 sec. | ||||
| MODE 4 | 3 sec. | ||||
| MODE 5 | 0 sec. | ||||
| Factory setting | Gradually dims from 100% to 0% in 1 second. | ||||
| R LAMP TIMER LOGIC SET | MODE 1(1) | Interior room lamp timer activates with synchronizing all doors. | |||
| MODE 2 | Interior room lamp timer activates with synchronizing the driver door only. | ||||
|
|||||
