Section 31 (Front Axle)
>>
Removal And Installation
>>
Front Drive Shaft Boot
>>
Exploded View
>>
Right Side
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Right Side
WARNING:
This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

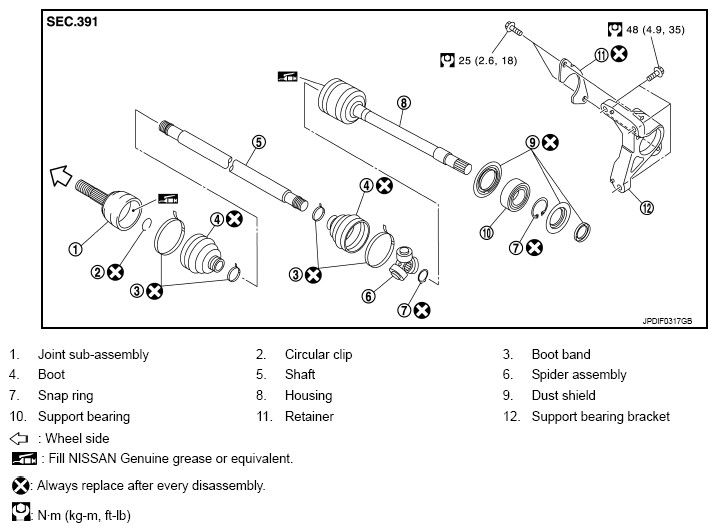

Fig 1: Exploded View Of Front Drive Shaft Boot With Torque Specifications (Right Side)
Courtesy of NISSAN MOTOR CO., U.S.A.
