Exploded View: Disassembly

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

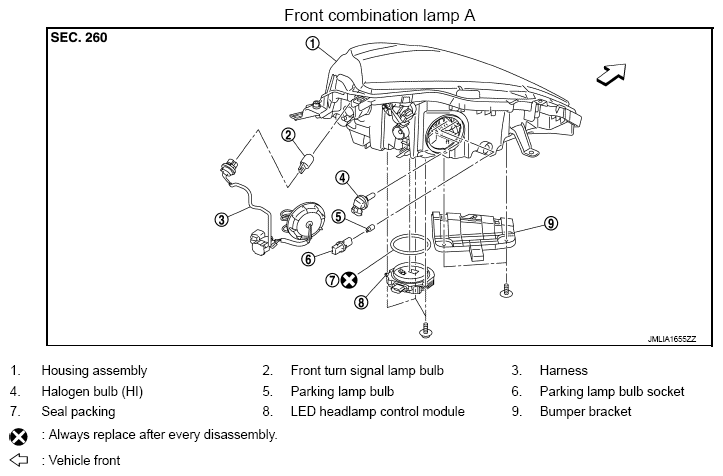

Fig 1: Disassembled View Of Front Combination Lamp

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Never disassemble LED headlamp unit assembly.
Replace front combination lamp A, when malfunction LED headlamp unit.

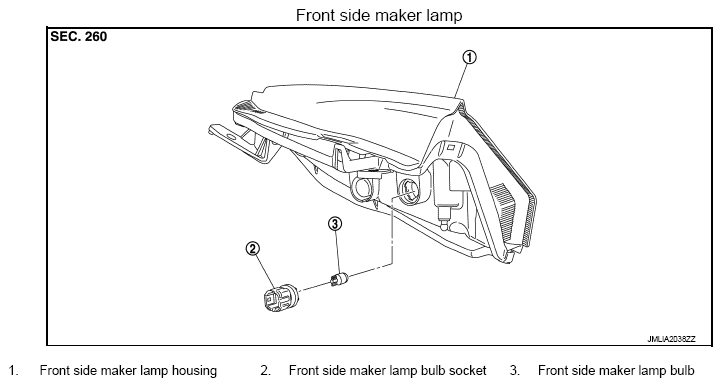

Fig 2: Identifying Front Side Maker Lamp Housing, Front Side Maker Lamp Bulb Socket And Front Side Maker Lamp Bulb
Courtesy of NISSAN MOTOR CO., U.S.A.
