Combination Meter

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

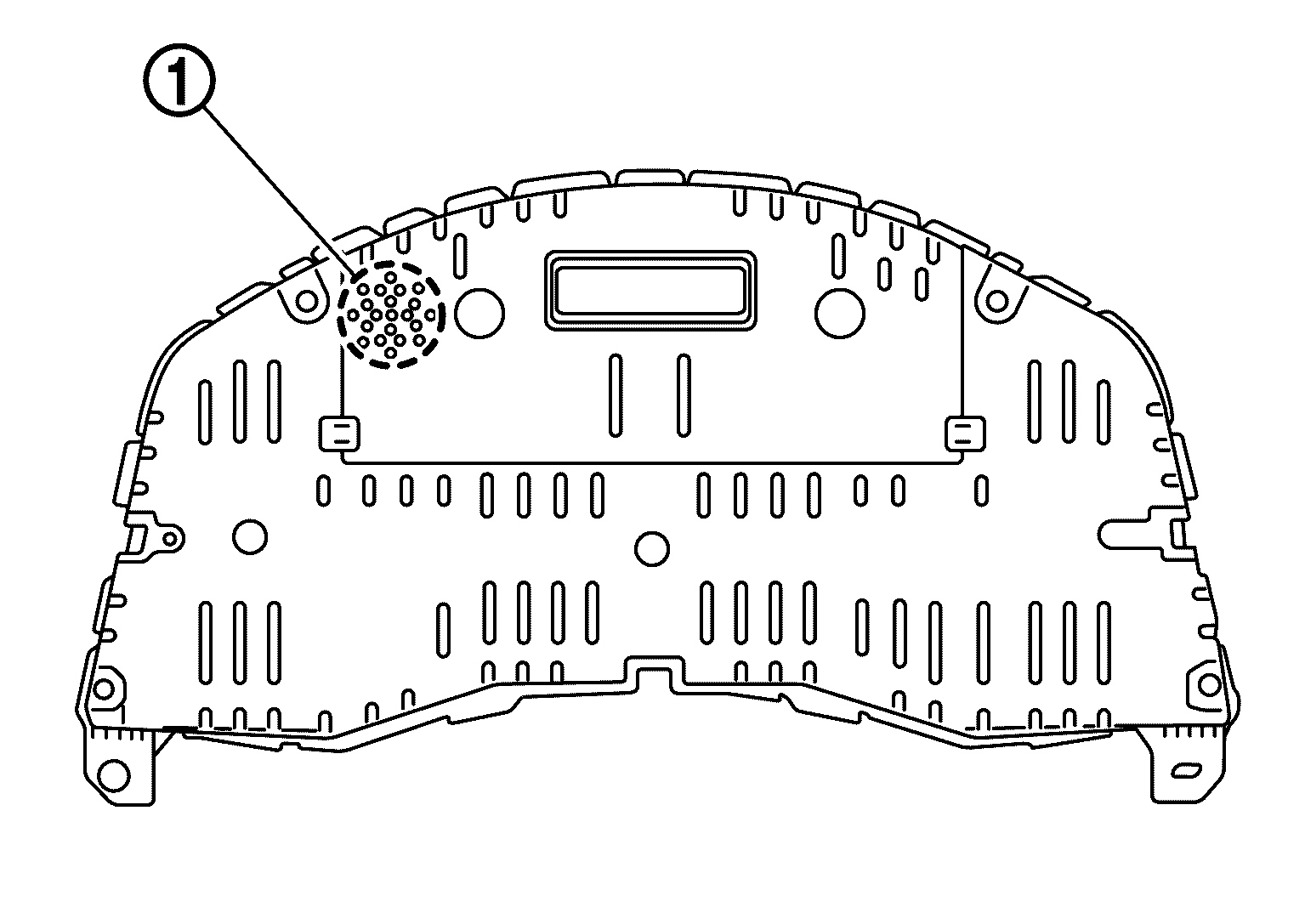

The buzzer (1) for the warning chime system is integrated in the combination meter.

Fig 1: Identifying Buzzer
G07088288Courtesy of NISSAN MOTOR CO., U.S.A.
