INTELLIGENT KEY SYSTEM : System Diagram

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

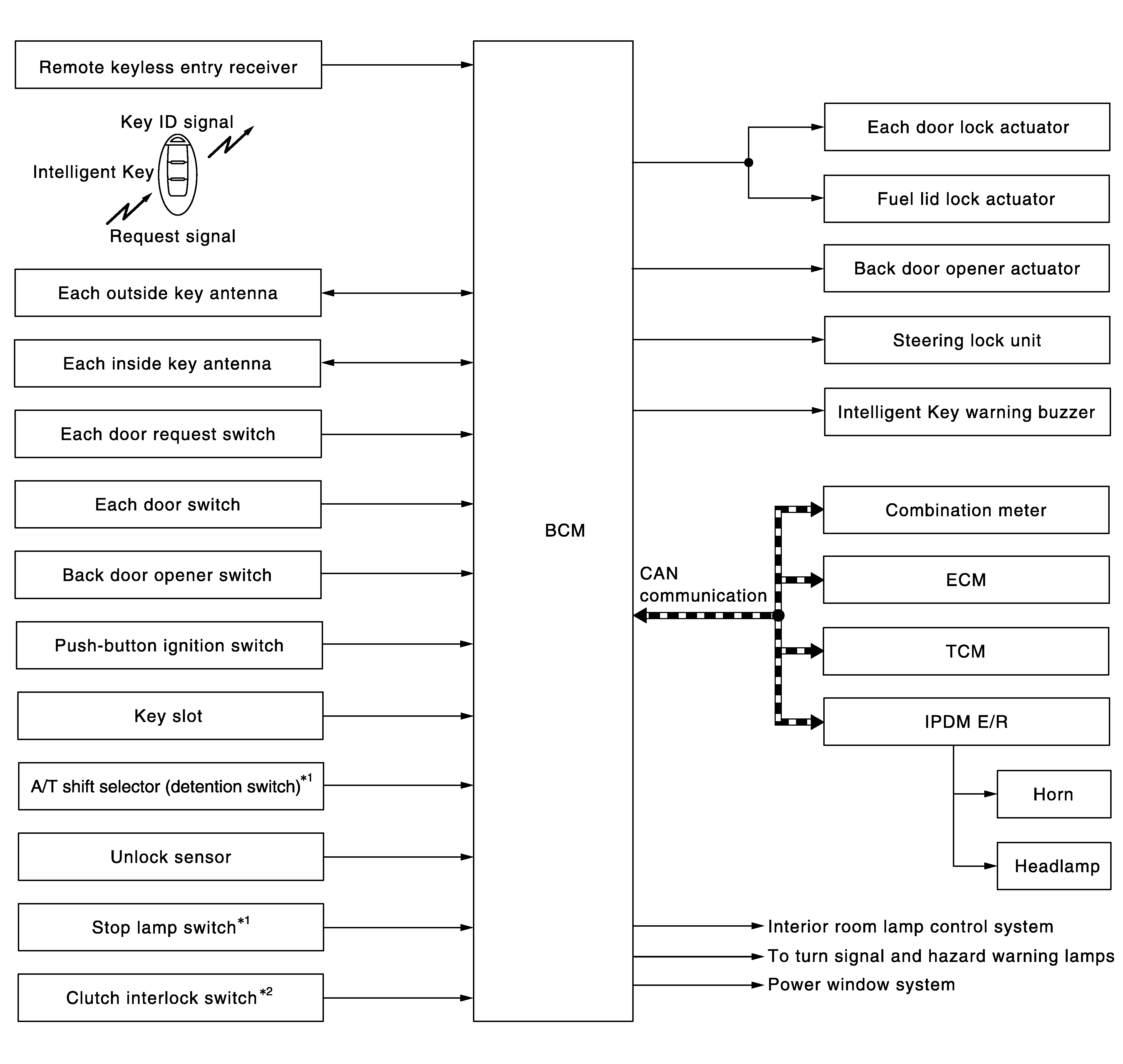

Fig 1: Intelligent Key System - System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

^*1 : With A/T models

^*2 : With M/T models
