Symptom Table

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

Perform "Data Monitor" of CONSULT-III to check for any malfunctioning item.
Check the malfunction combinations.

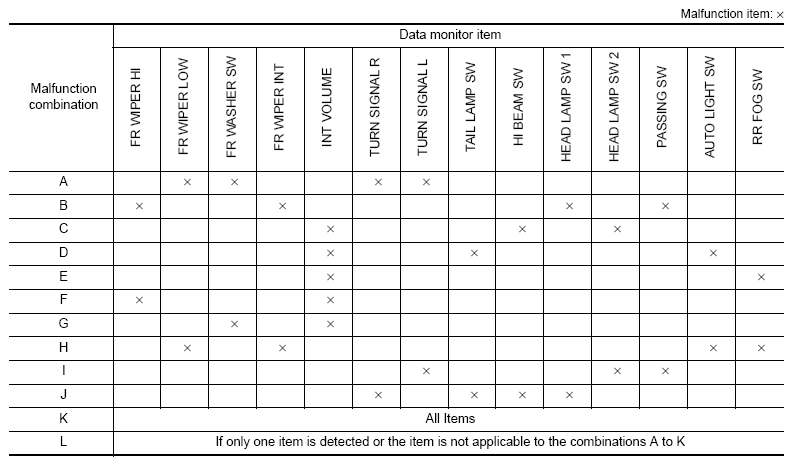

Fig 1: Combination Switch System Problem Symptoms Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

Identify the malfunctioning part from the agreed combination and repair or replace the part.

MALFUNCTION COMBINATION SPECIFICATION

Malfunction combination	Malfunctioning part	Repair or replace
A	Combination switch INPUT 1 circuit	Inspect the combination switch input circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ".
B	Combination switch INPUT 2 circuit
C	Combination switch INPUT 3 circuit
D	Combination switch INPUT 4 circuit
E	Combination switch INPUT 5 circuit
F	Combination switch OUTPUT 1 circuit	Inspect the combination switch output circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ".
G	Combination switch OUTPUT 2 circuit
H	Combination switch OUTPUT 3 circuit
I	Combination switch OUTPUT 4 circuit
J	Combination switch OUTPUT 5 circuit
K	BCM Replace BCM.	Refer to "EXPLODED VIEW ".
L	Combination switch	Replace the combination switch.
