Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery cable from the negative terminal.
  2. Remove the cowl top cover (RH). Refer to "EXPLODED VIEW ".
  3. Pull up the IPDM E/R assembly while pressing the pawls (A) on the back of the IPDM E/R cover B (1).

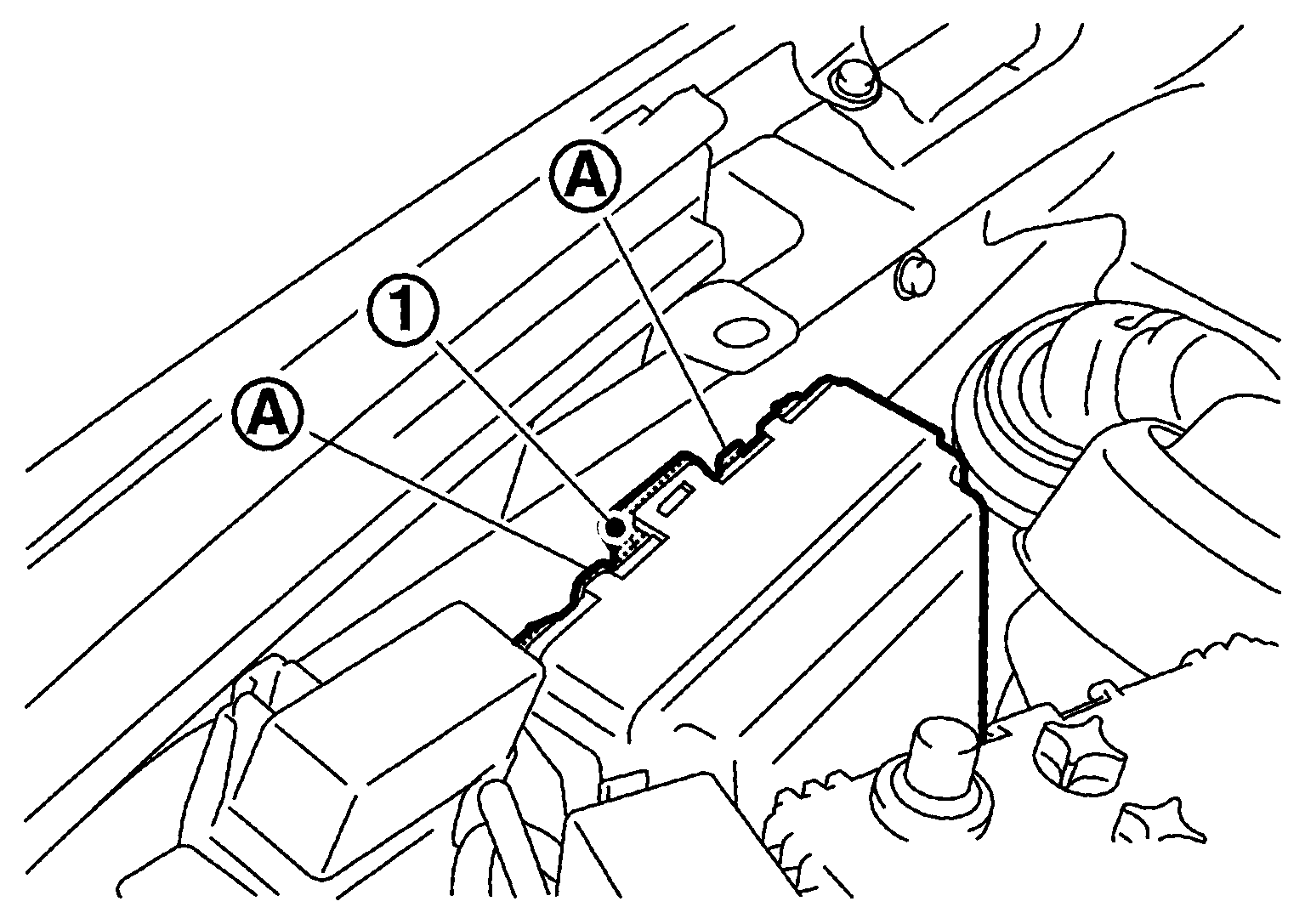

    Fig 1: Identifying IPDM E/R Cover
    G06053570Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the IPDM E/R cover A (1) while pressing the pawls (A) at the lower end of the IPDM E/R cover A.
  5. Disconnect the harness connector and remove the IPDM E/R (2).
  6. Remove the IPDM E/R cover B.

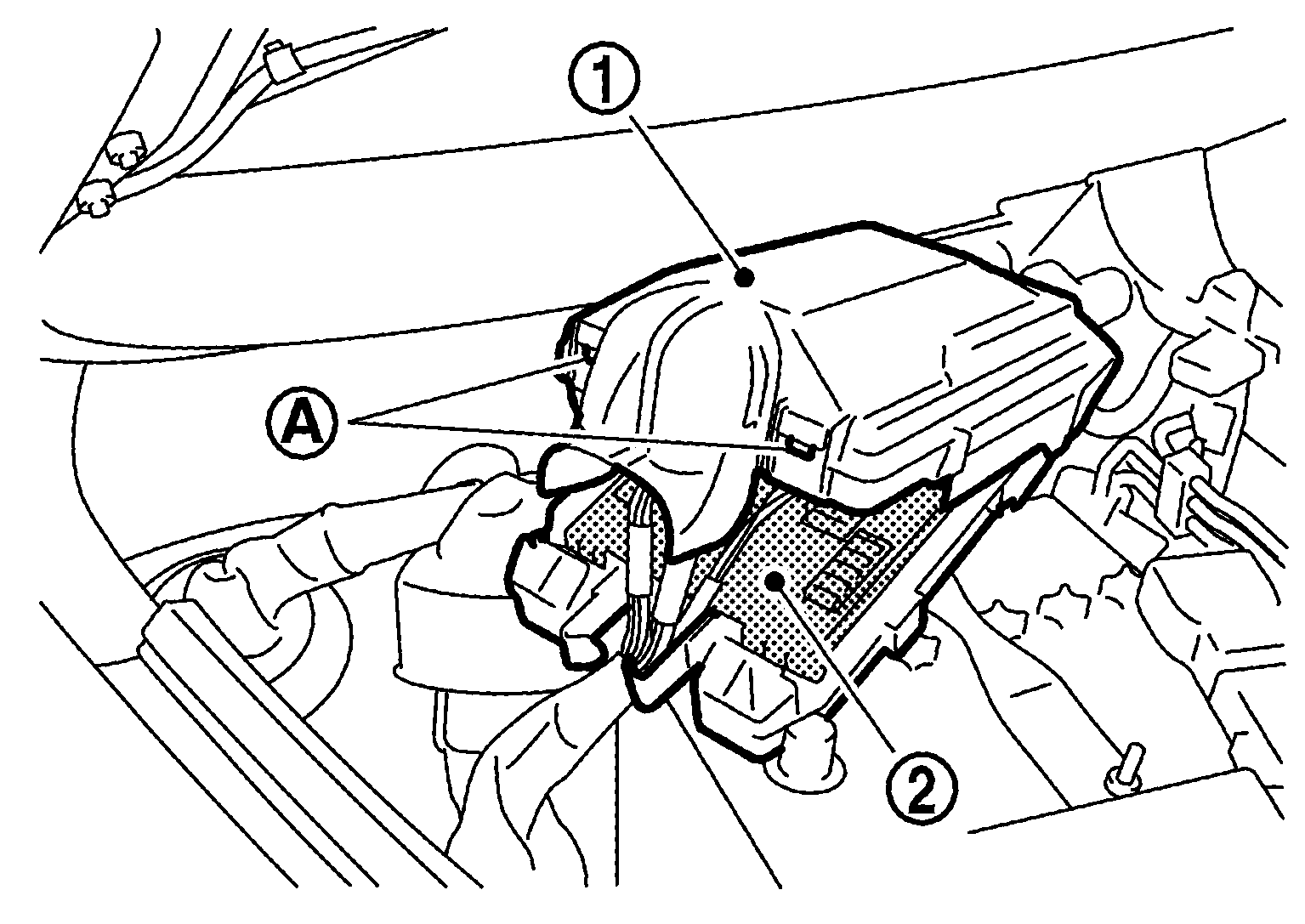

    Fig 2: Identifying IPDM E/R Cover A
    G06053571Courtesy of NISSAN MOTOR CO., U.S.A.
