Side Support Switch Connector End View (B464)

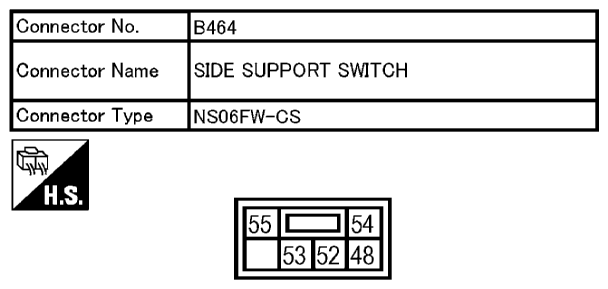

Fig 1: Side Support Switch Connector End View (B464)
G10675848Courtesy of NISSAN NORTH AMERICA, INC.
