AWD: Exploded View

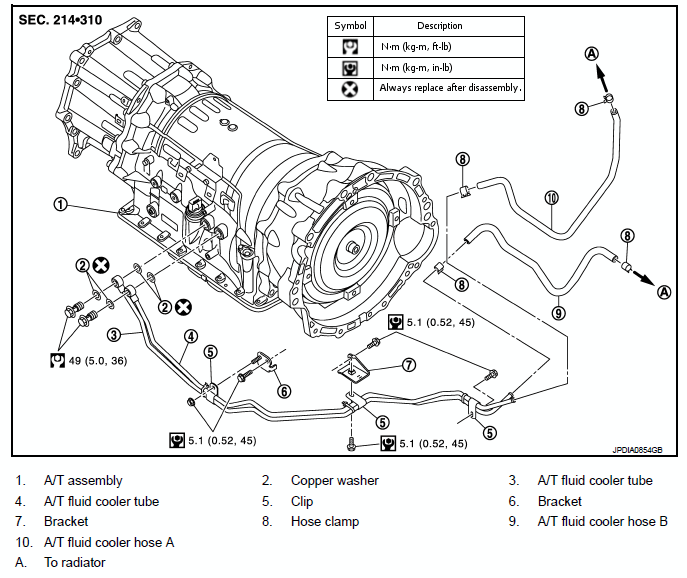

Fig 1: Exploded View Of A/T Fluid Cooler Tube With Torque Specifications (AWD)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
