When Cooperative Regenerative Brake Control Is Operating
WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

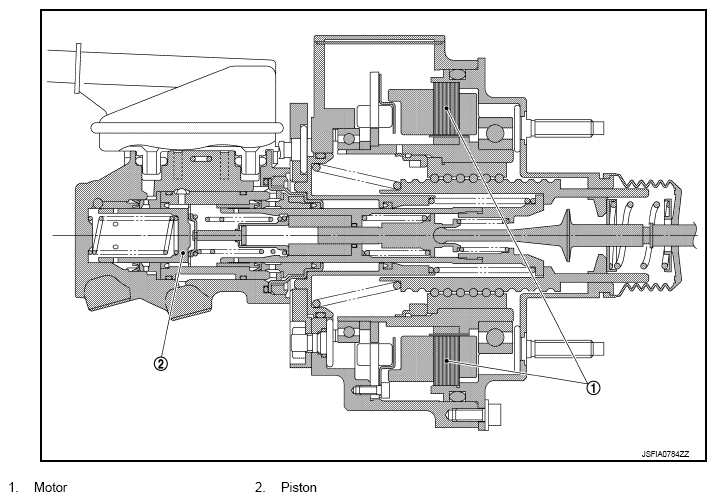

Fig 1: Identifying Motor And Piston Of Brake Booster (Cooperative Regenerative Brake Control Is Operating)
When the amount of regenerative braking increases, the motor inside the electrically-driven intelligent brake unit returns the master cylinder piston, lowering the fluid pressure. While the vehicle is stopped, because the amount of regenerative braking decreases, the motor inside the electrically-driven intelligent brake unit presses the master cylinder piston, increasing the fluid pressure.
