Combination Switch Matrix

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

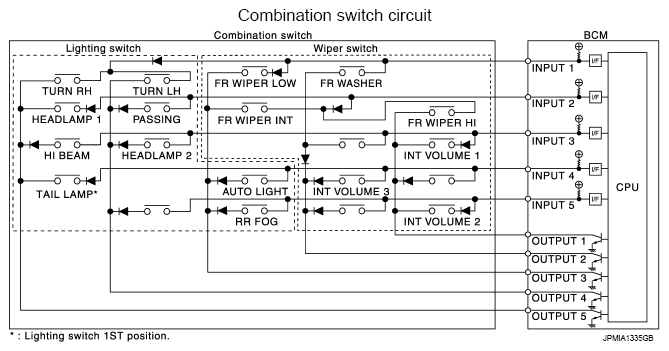

Fig 1: Combination Switch Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Combination switch INPUT-OUTPUT system list

COMBINATION SWITCH INPUT-OUTPUT SYSTEM LIST

System	OUTPUT 1	OUTPUT 2	OUTPUT 3	OUTPUT 4	OUTPUT 5
INPUT 1	-	FR WASHER	FR WIPER LOW	TURN LH	TURN RH
INPUT 2	FR WIPER HI	-	FR WIPER INT	PASSING	HEADLAMP 1
INPUT 3	INT VOLUME 1	-	-	HEADLAMP 2	HI BEAM
INPUT 4	-	INT VOLUME 3	AUTO LIGHT	-	TAIL LAMP
INPUT 5	INT VOLUME 2	-	RR FOG	-	-

NOTE: Headlamp has a dual system switch.
