Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove power window main switch finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove power window main switch (1) from power window main switch finisher (2) using flat-head screw driver (A).

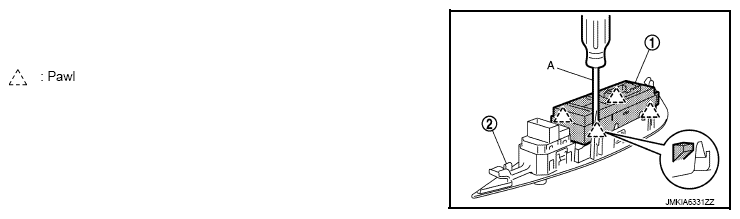

    Fig 1: Removing Power Window Main Switch From Power Window Main Switch Finisher Using Flat-Head Screw Driver
    G07088162Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not fold the pawl of power window main switch finisher.
    NOTE: The same procedure is also performed for front power window switch (passenger side) and rear power window switch (LH & RH).
