Component Parts Location

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

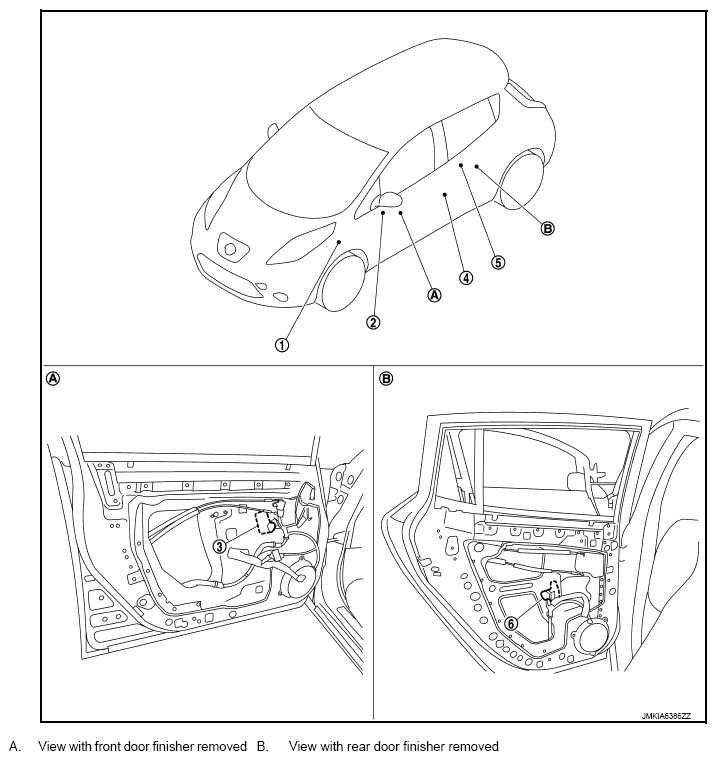

Fig 1: Power Window Control System Parts Location

Courtesy of NISSAN MOTOR CO., U.S.A.

FUNCTION CHART

No.	Component parts	Function
1.	BCM	Supplies power supply to power window switch Controls retained power Refer to "BODY CONTROL SYSTEM : COMPONENT PARTS LOCATION " for detailed installation location
2.	Power window main switch	Directly controls all power window motor of all doors Controls anti-pinch operation of power window
3.	Front power window motor (driver side)	Integrates the encoder and power window motor Starts operating with signals from power window main switch Transmits front power window motor (driver side) rotation as a pulse signal to power window main switch
4.	Front door switch (driver side)	Inputs door open/close condition to BCM
5.	Rear power window switch LH	Controls power window motor of rear door LH
6.	Rear power window motor LH	Starts operating with signals from power window main switch & rear power window switch LH
