Map Menu
WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

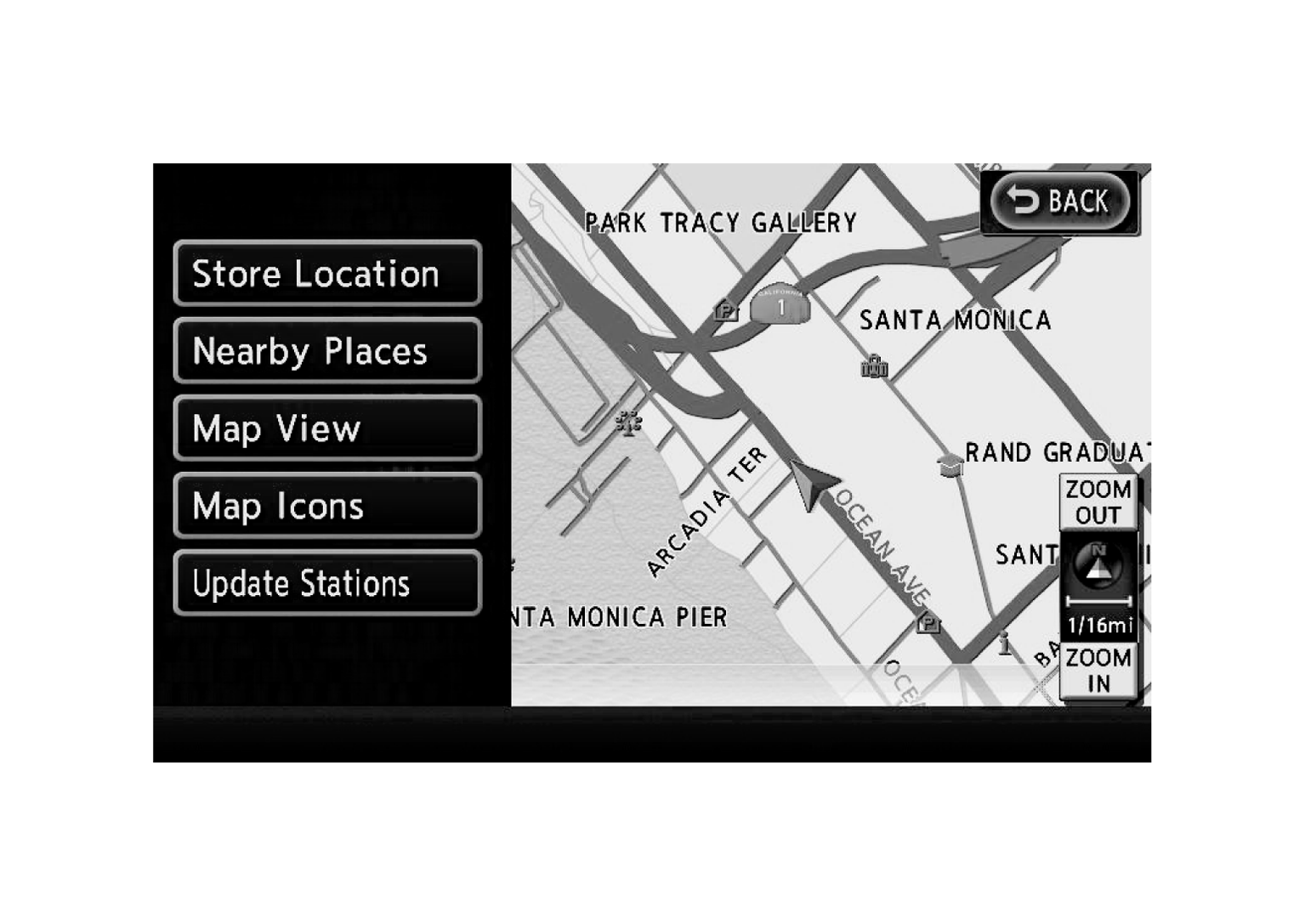

Map menu at current location
If the following operation is performed at the current location, the available map menu is displayed.
- Touch the "Map Menu" switch on the map.
MENU LIST
| Menu item | Description | |
|---|---|---|
| Store Location | Stores the current vehicle location in the Address Book. The stored location can be retrieved as necessary to set it as a destination (waypoint). | |
| Quick Stop | Searches for points of interest near the current vehicle location, such as restaurants and charging stations, etc. | |
| Map Settings | Map View | The screen display [Planview view, Birdview®, split screen (2D/2D), split screen (2D/2D)] can be changed. |
| Split Screen | ||
| Map Settings | Map Orientation (sets the map direction to North Up or Heading Up), Long Range (on/off), Birdview Angle (Changes the Birdview® angle), Left Settings (sets the map settings for the left screen of the split map) and Automatic Display of Highway Mode (on/off) can be set. | |
| Back to Map. | Return to the current position screen. | |
| Landmark Icons | Displays map icons of certain points of interest (such as restaurants and charging stations, etc.) on the map around the current vehicle location | |
| Update Station | Charging station information is updated through connection to the Nissan CARWINGS Data Center. | |

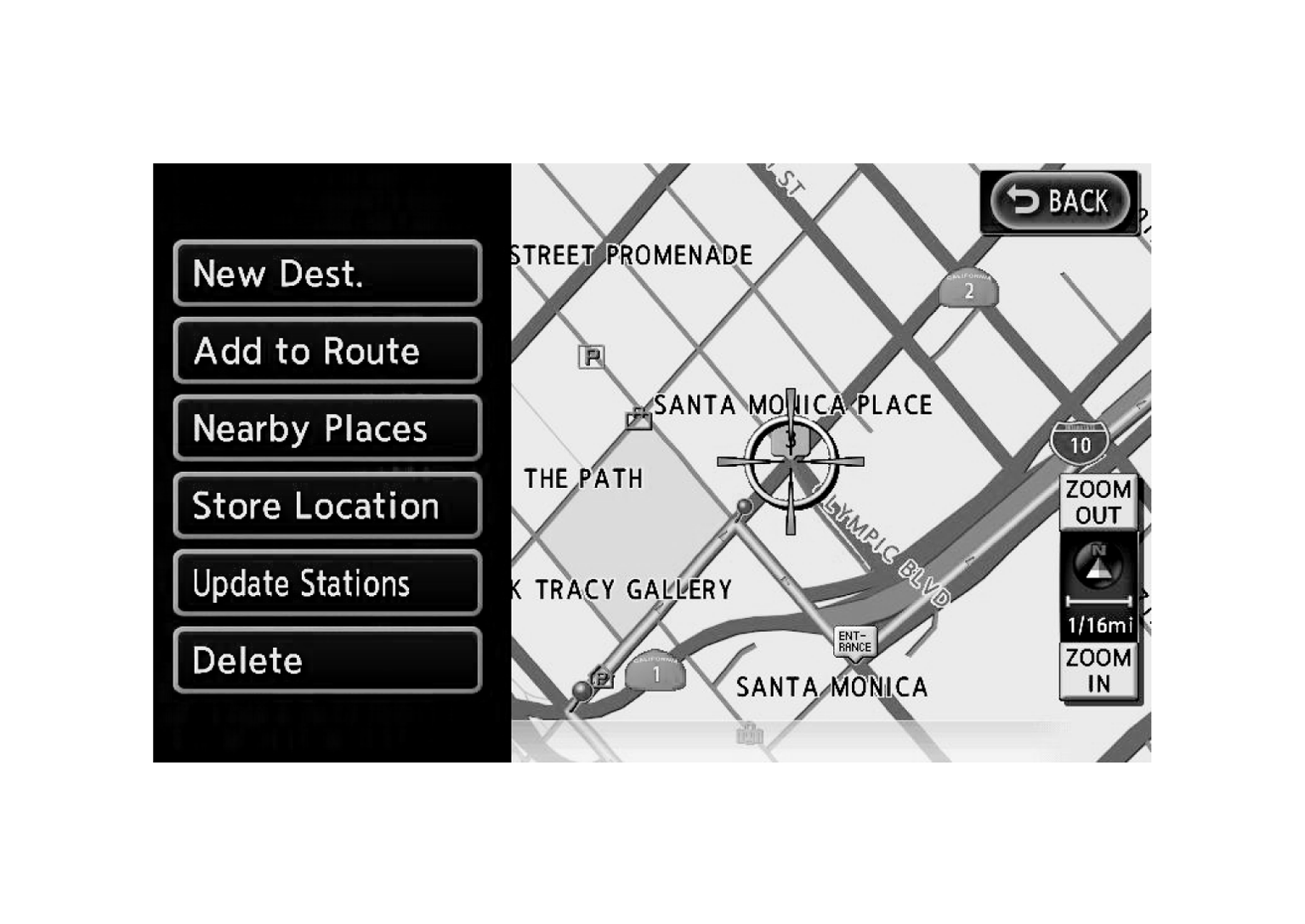

Map menu after scroll of map
If the following operation is performed after scrolling the map, the available map menu is displayed.
- Touch the "Map Menu" switch on the map.MENU LIST
Menu item Description New Dest. Sets the destination to the map location where [New Dest.] was touched. If a destination is already set, the location will be set as the new destination. Add to Route Sets the map location where [Add to Route] was touched as the destination or a waypoint. This is available only when a suggested route is already set. Quick Stop Searches for points of interest such as restaurants and charging stations, etc. near the location by scrolling the map. Store Location Store the map location where [Store location] was touched in the Address Book. The stored location can be retrieved to set it as a destination or waypoint. Update Stations Contact the Nissan CARWINGS Data Center to update charging station around the point of the cursor. Delete Deletes a destination, waypoint or stored location. To delete, place the cross pointer over the corresponding icon.
