System Diagram

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

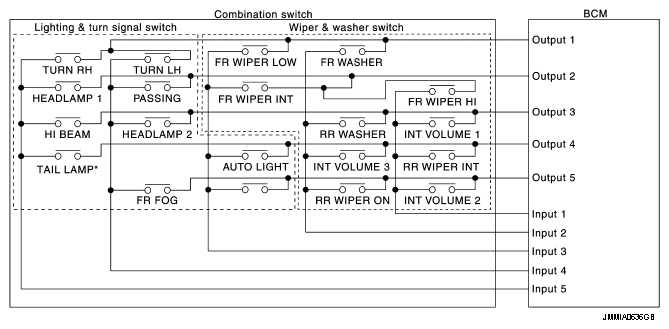

Fig 1: Combination Switch - System Diagram
G07087689Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: *: TAIL LAMP switch links lighting switch 1ST and 2ND positions.
