Exploded View: Disassembly

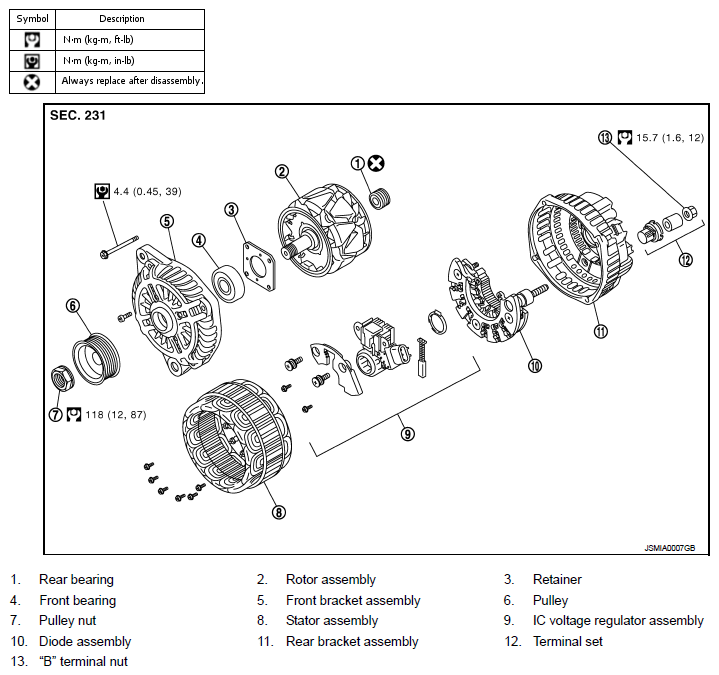

Fig 1: Exploded View Of Alternator With Torque Specifications (Type A003TJ1991)
G08448135Courtesy of NISSAN NORTH AMERICA, INC.

Refer to COMPONENTS for symbols in the figure.
