Security Control System: Wiring Diagram

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

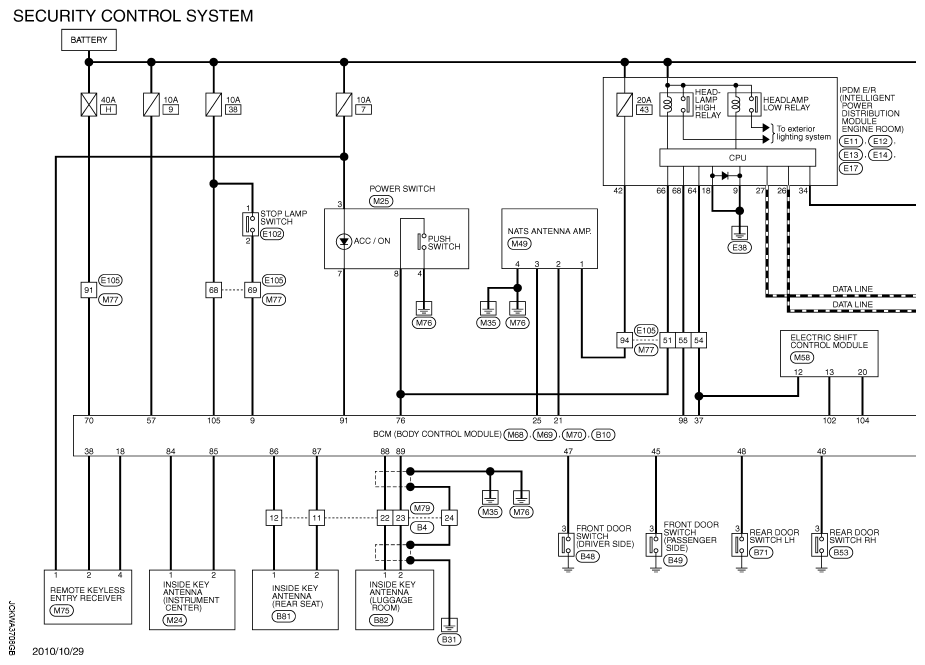

Fig 1: Security Control System - Wiring Diagram (1 Of 3)

G07087423

Courtesy of NISSAN MOTOR CO., U.S.A.

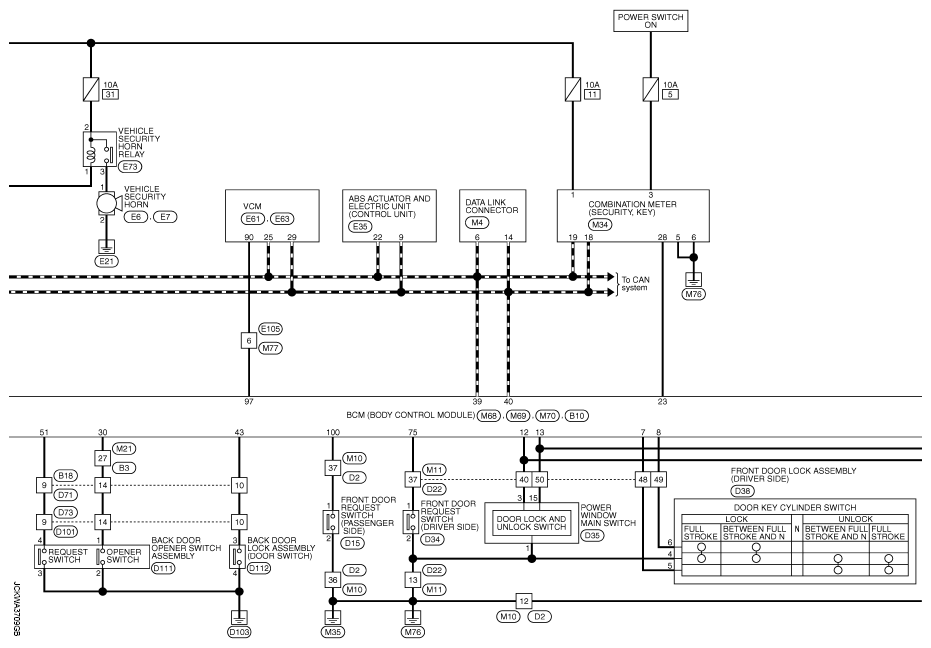

Fig 2: Security Control System - Wiring Diagram (2 Of 3)

G07087424

Courtesy of NISSAN MOTOR CO., U.S.A.

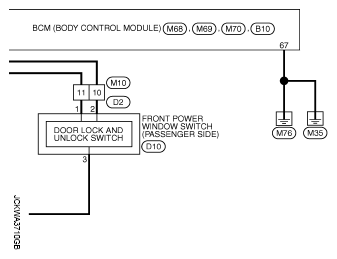

Fig 3: Security Control System - Wiring Diagram (3 Of 3)

G07087425

Courtesy of NISSAN MOTOR CO., U.S.A.

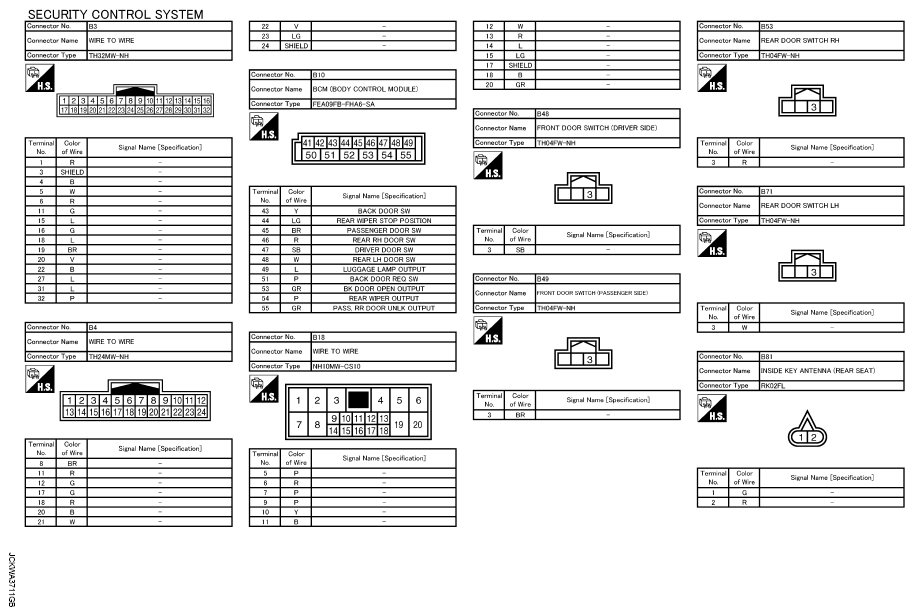

Fig 4: Identifying Security Control System Connectors (1 Of 8)

G07087426

Courtesy of NISSAN MOTOR CO., U.S.A.

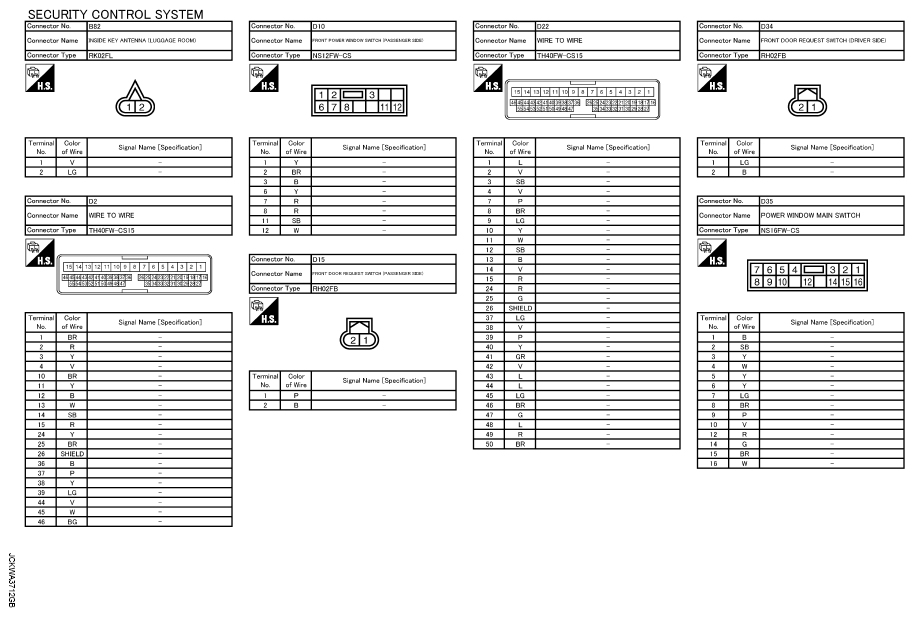

Fig 5: Identifying Security Control System Connectors (2 Of 8)

G07087427

Courtesy of NISSAN MOTOR CO., U.S.A.

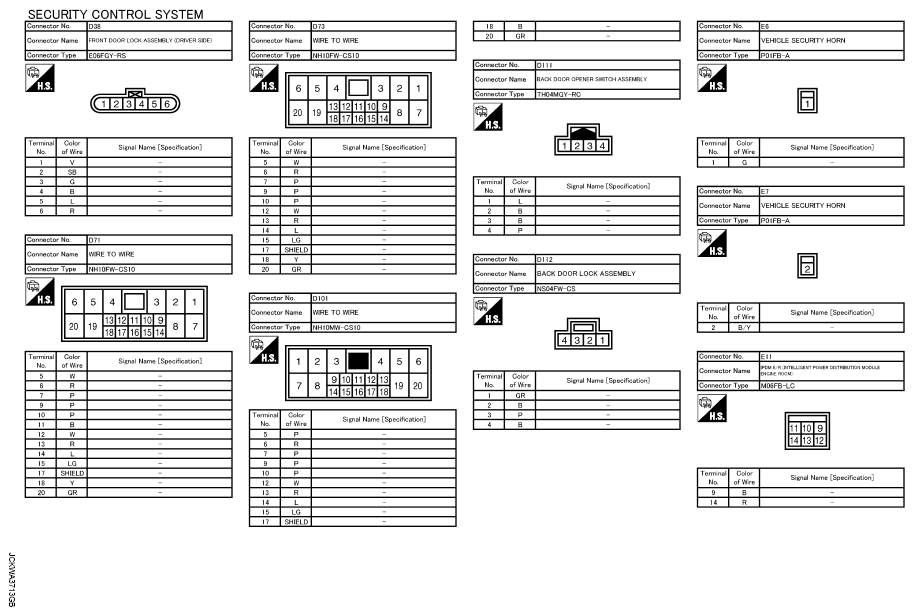

Fig 6: Identifying Security Control System Connectors (3 Of 8)

G07087428

Courtesy of NISSAN MOTOR CO., U.S.A.

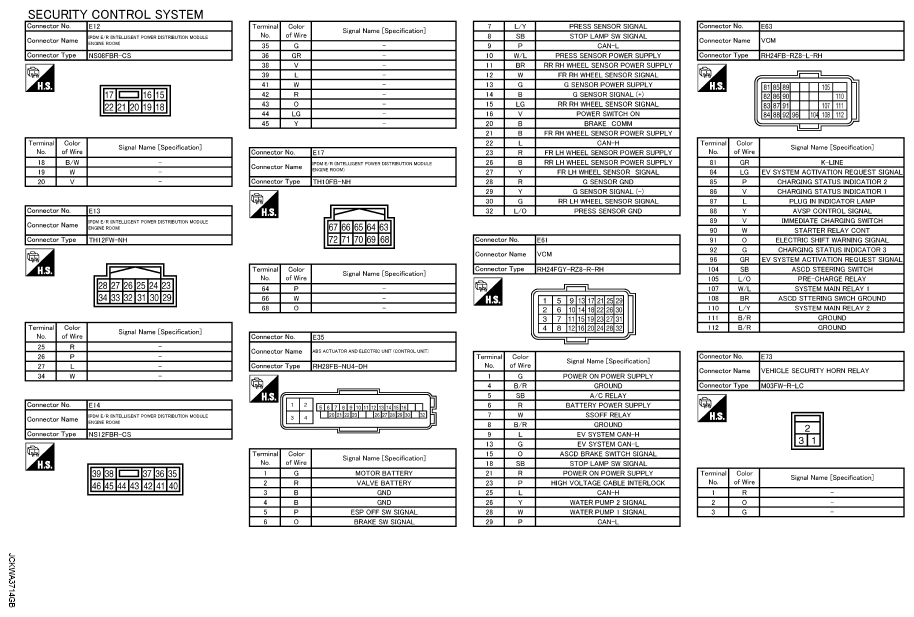

Fig 7: Identifying Security Control System Connectors (4 Of 8)

G07087429

Courtesy of NISSAN MOTOR CO., U.S.A.

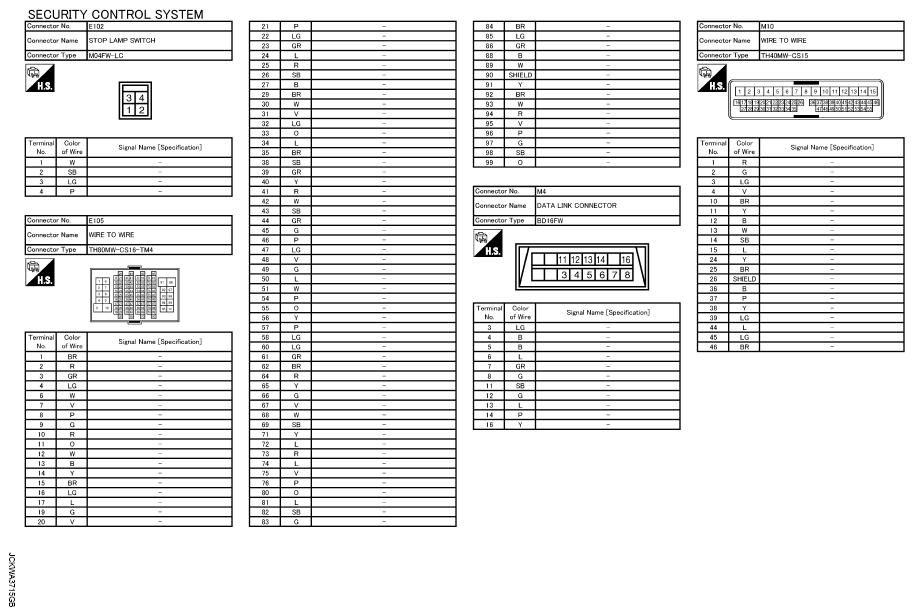

Fig 8: Identifying Security Control System Connectors (5 Of 8)

G07087430

Courtesy of NISSAN MOTOR CO., U.S.A.

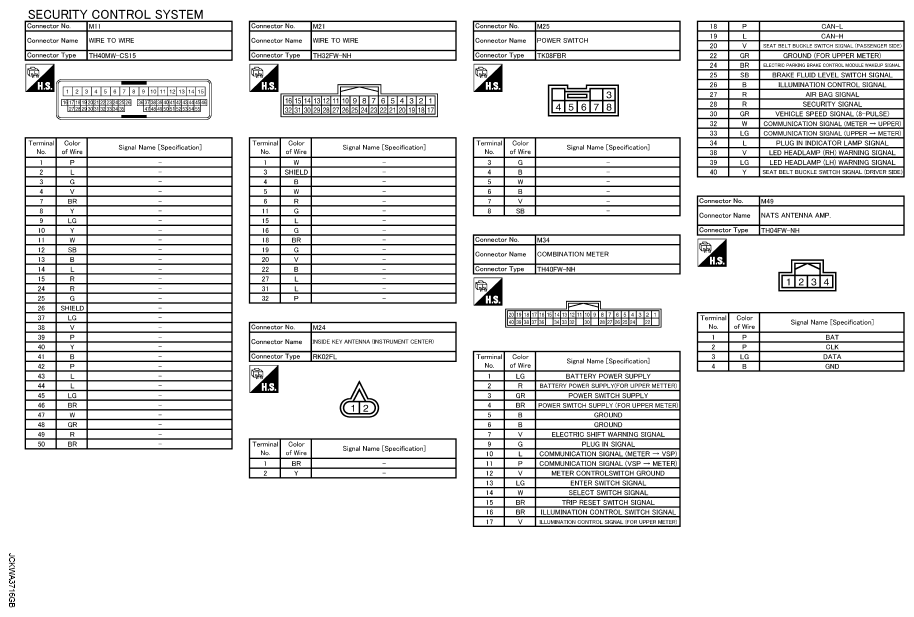

Fig 9: Identifying Security Control System Connectors (6 Of 8)

G07087431

Courtesy of NISSAN MOTOR CO., U.S.A.

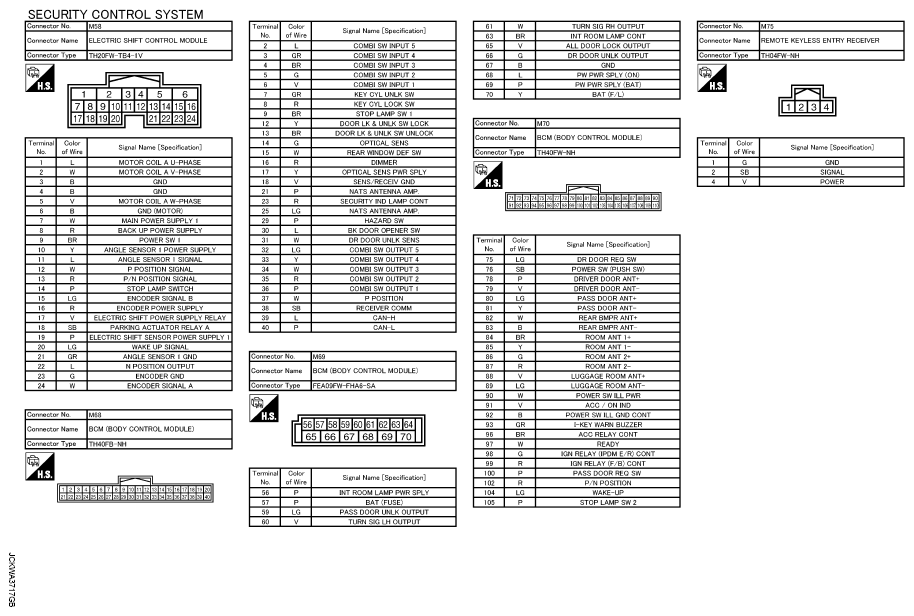

Fig 10: Identifying Security Control System Connectors (7 Of 8)

G07087432

Courtesy of NISSAN MOTOR CO., U.S.A.

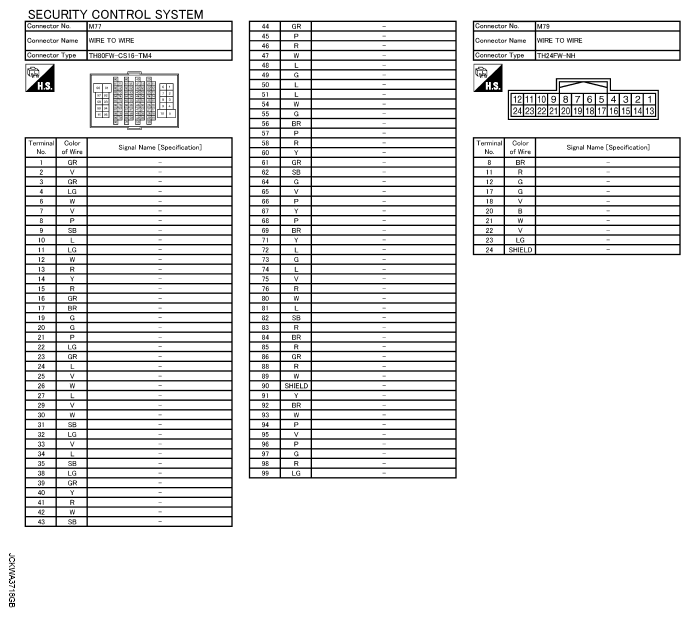

Fig 11: Identifying Security Control System Connectors (8 Of 8)

G07087433

Courtesy of NISSAN MOTOR CO., U.S.A.
