Removal and Installation: Removal

  1. Remove the door finisher.

    Refer to "REMOVAL AND INSTALLATION ".

  2. Power window main switch (1) is removed from door finisher using remover tool (A).

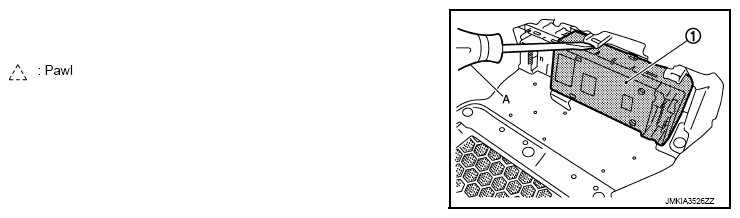

    Fig 1: Removing Power Window Main Switch Using Remover Tool
    G08447068Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not fold the pawl of power window main switch finisher.
    NOTE: The same procedure is also performed for power window subswitch.
