Exploded View: Disassembly

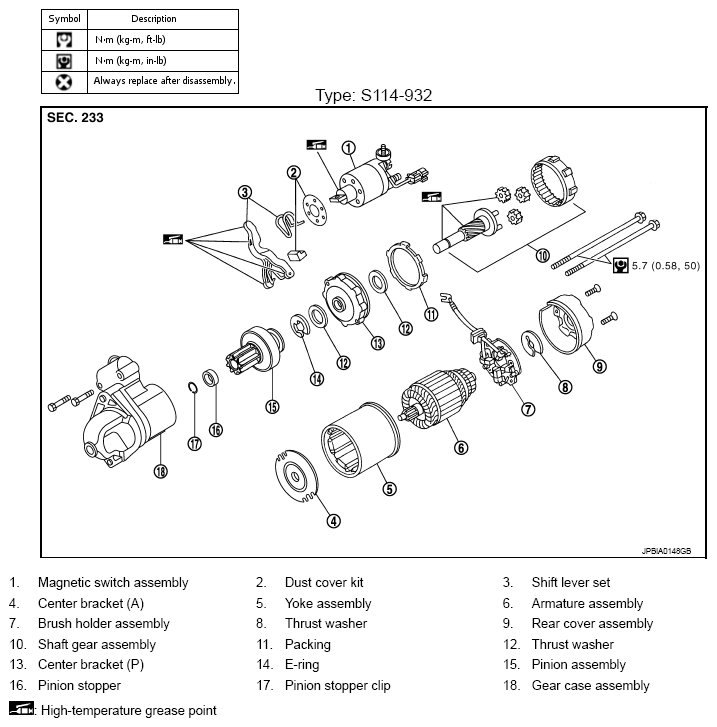

Fig 1: Disassembled View Of Starter Motor - Type S114-932 With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
