Quick Connector

CAUTION:
  • After connecting fuel tube quick connectors, check quick connectors are secure.

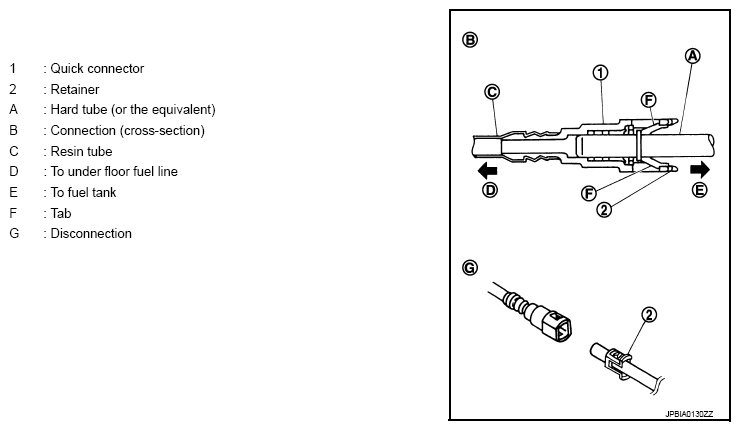

    Fig 1: Identifying Quick Connector
    G08449729Courtesy of NISSAN NORTH AMERICA, INC.
  • Ensure that connector and resin tube never contact any adjacent parts.
