Component Parts Location

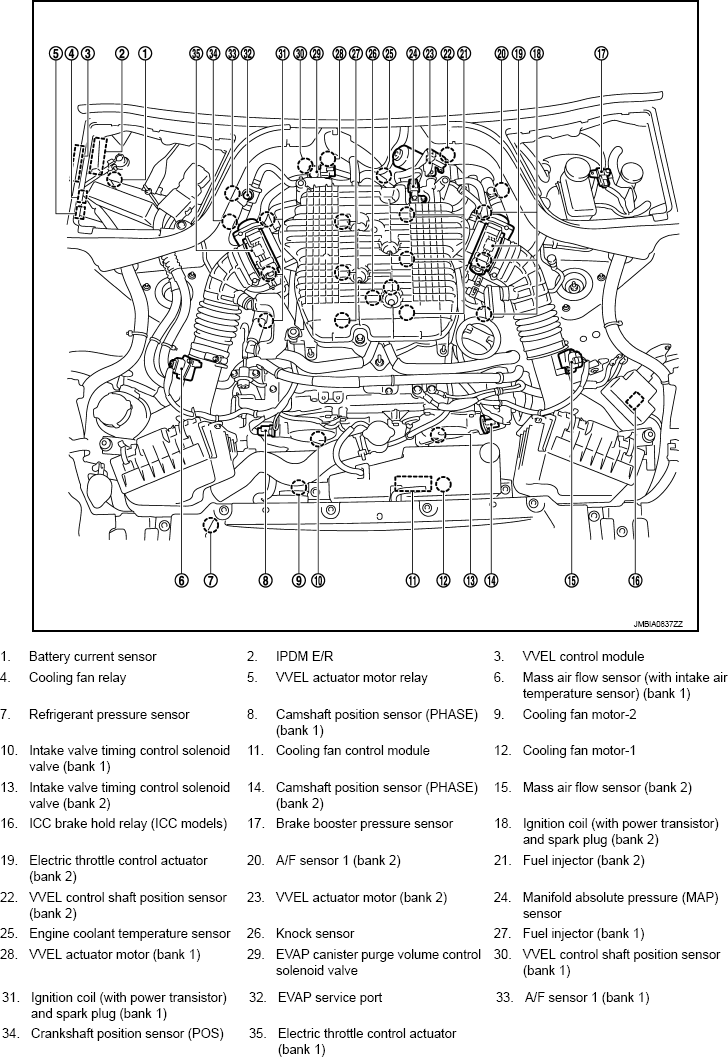

Fig 1: Cooling Fan Control Component Parts Location (1 Of 21)

G08443607

Courtesy of NISSAN NORTH AMERICA, INC.

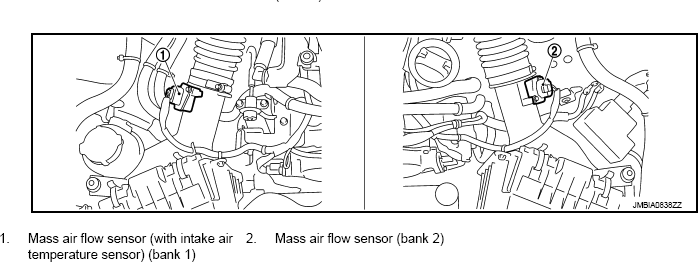

Fig 2: Cooling Fan Control Component Parts Location (2 Of 21)

G08443608

Courtesy of NISSAN NORTH AMERICA, INC.

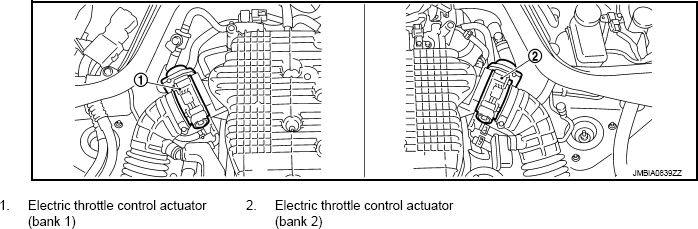

Fig 3: Cooling Fan Control Component Parts Location (3 Of 21)

G08443609

Courtesy of NISSAN NORTH AMERICA, INC.

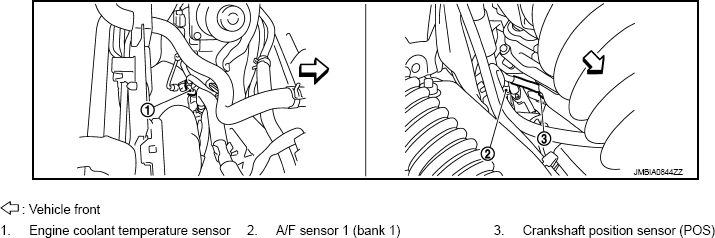

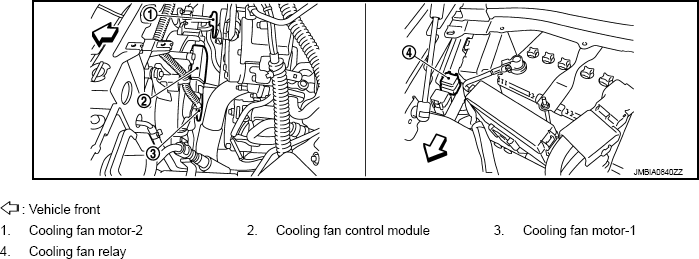

Fig 4: Cooling Fan Control Component Parts Location (4 Of 21)

G08443610

Courtesy of NISSAN NORTH AMERICA, INC.

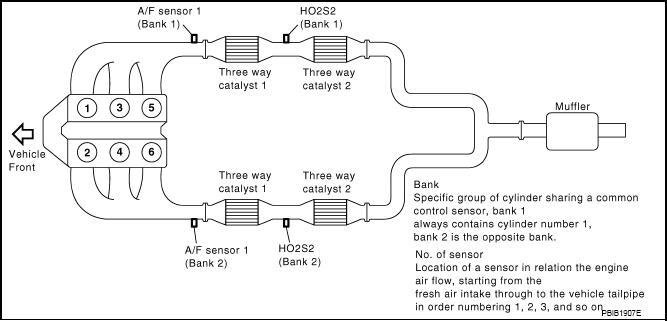

Fig 5: Cooling Fan Control Component Parts Location (5 Of 21)

G08443611

Courtesy of NISSAN NORTH AMERICA, INC.

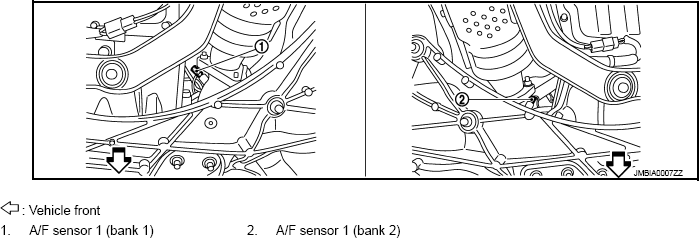

Fig 6: Cooling Fan Control Component Parts Location (6 Of 21)

G08443612

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Cooling Fan Control Component Parts Location (7 Of 21)

G08443613

Courtesy of NISSAN NORTH AMERICA, INC.

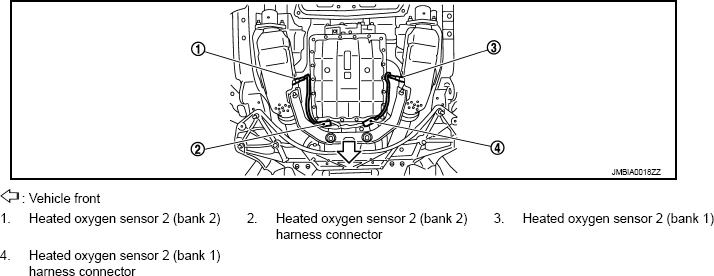

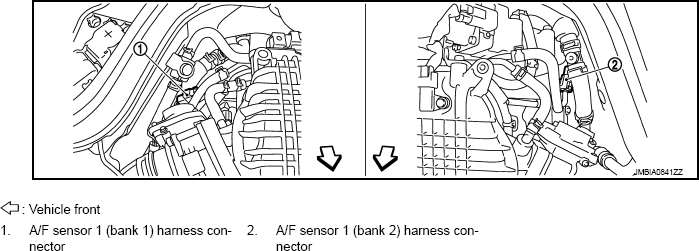

Fig 8: Cooling Fan Control Component Parts Location (8 Of 21)

G08443614

Courtesy of NISSAN NORTH AMERICA, INC.

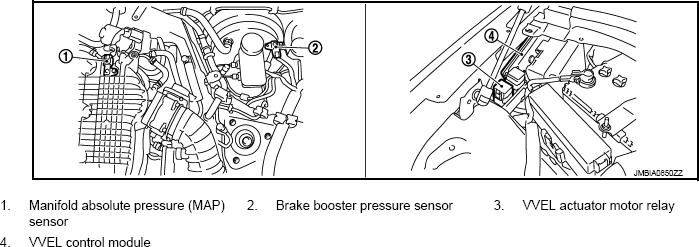

Fig 9: Cooling Fan Control Component Parts Location (9 Of 21)

G08443615

Courtesy of NISSAN NORTH AMERICA, INC.

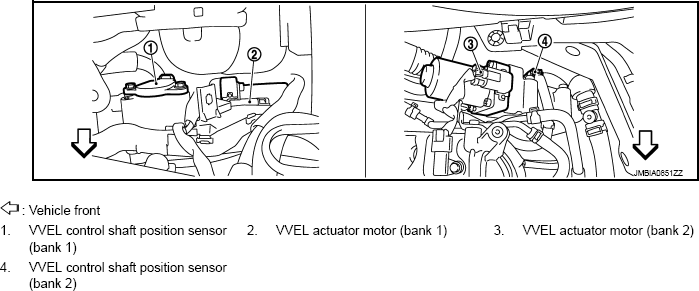

Fig 10: Cooling Fan Control Component Parts Location (10 Of 21)

G08443616

Courtesy of NISSAN NORTH AMERICA, INC.

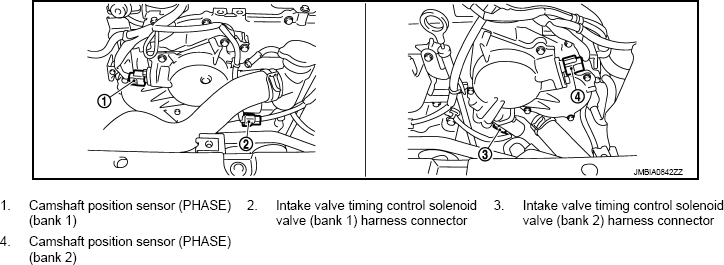

Fig 11: Cooling Fan Control Component Parts Location (11 Of 21)

G08443617

Courtesy of NISSAN NORTH AMERICA, INC.

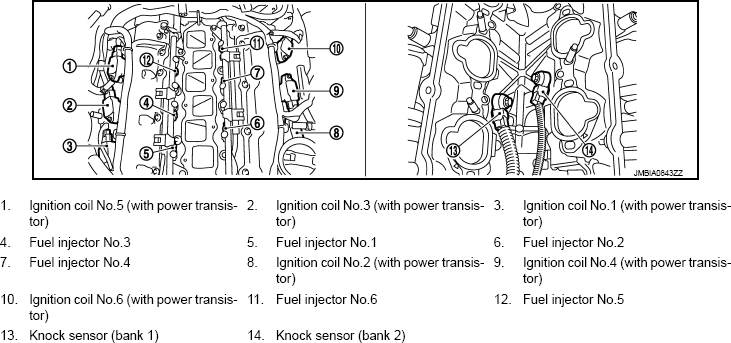

Fig 12: Cooling Fan Control Component Parts Location (12 Of 21)

G08443618

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Cooling Fan Control Component Parts Location (13 Of 21)

G08443619

Courtesy of NISSAN NORTH AMERICA, INC.

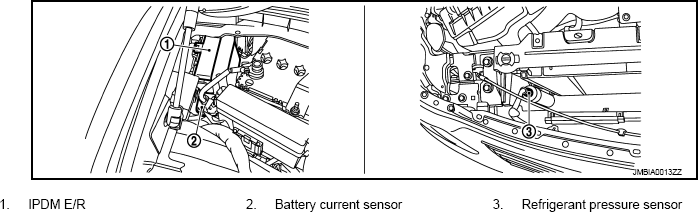

Fig 14: Cooling Fan Control Component Parts Location (14 Of 21)

G08443620

Courtesy of NISSAN NORTH AMERICA, INC.

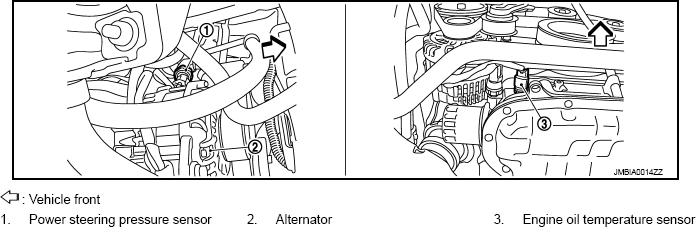

Fig 15: Cooling Fan Control Component Parts Location (15 Of 21)

G08443621

Courtesy of NISSAN NORTH AMERICA, INC.

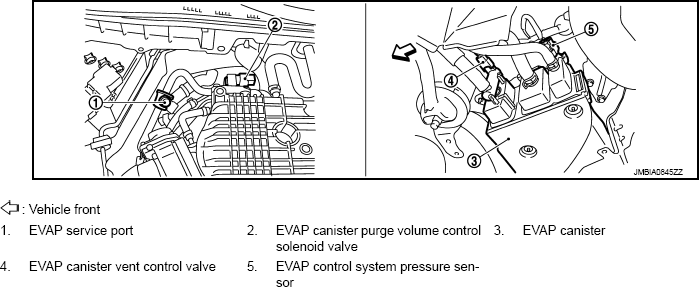

Fig 16: Cooling Fan Control Component Parts Location (16 Of 21)

G08443622

Courtesy of NISSAN NORTH AMERICA, INC.

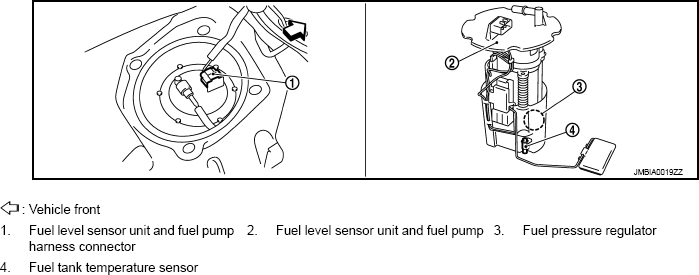

Fig 17: Cooling Fan Control Component Parts Location (17 Of 21)

G08443623

Courtesy of NISSAN NORTH AMERICA, INC.

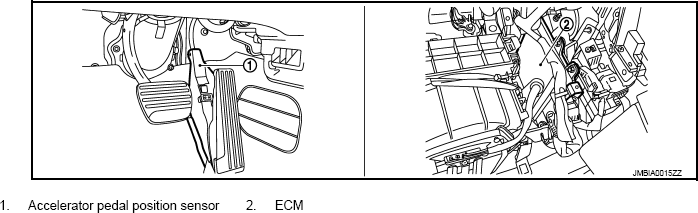

Fig 18: Cooling Fan Control Component Parts Location (18 Of 21)

G08443624

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Cooling Fan Control Component Parts Location (19 Of 21)

G08443625

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Cooling Fan Control Component Parts Location (20 Of 21)

G08443626

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Cooling Fan Control Component Parts Location (21 Of 21)

G08443627

Courtesy of NISSAN NORTH AMERICA, INC.
