Component Parts Location

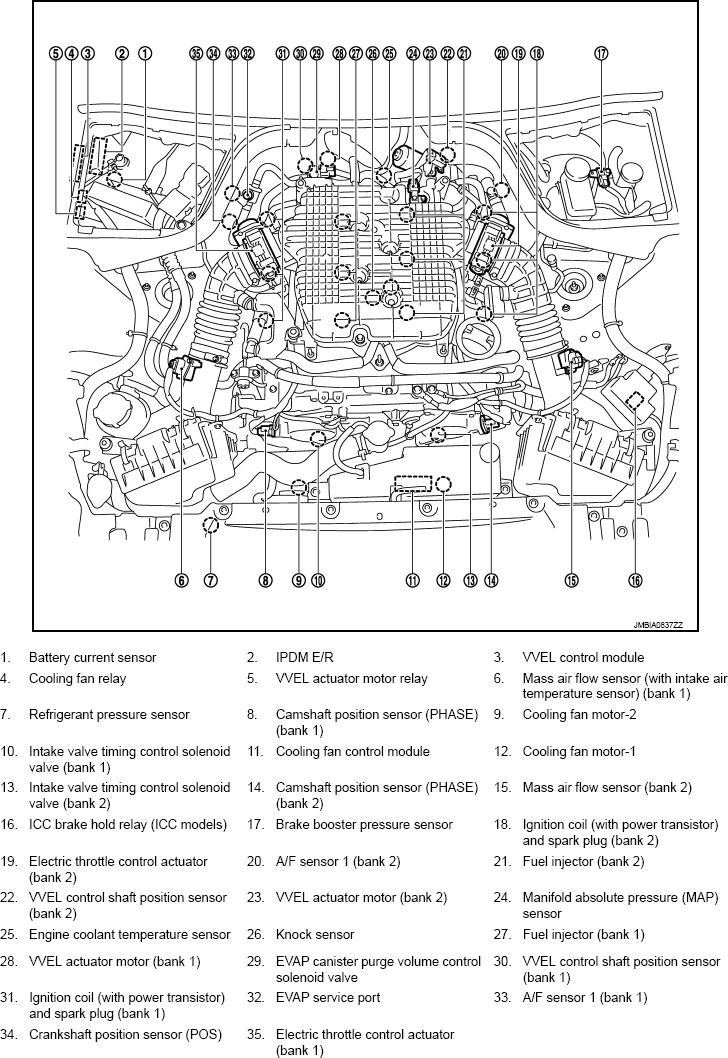

Fig 1: Fuel Filler Cap Warning System Component Parts Location (1 Of 21)

G08443654

Courtesy of NISSAN NORTH AMERICA, INC.

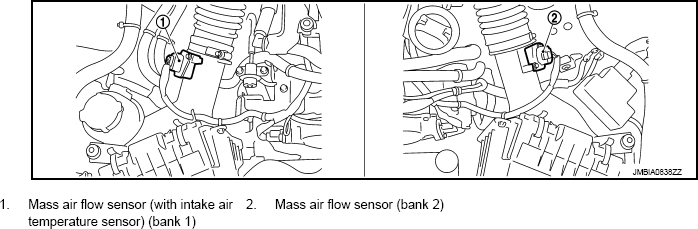

Fig 2: Fuel Filler Cap Warning System Component Parts Location (2 Of 21)

G08443655

Courtesy of NISSAN NORTH AMERICA, INC.

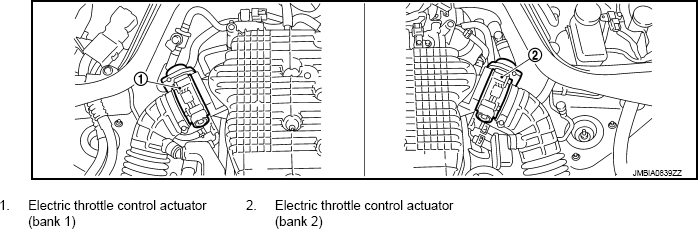

Fig 3: Fuel Filler Cap Warning System Component Parts Location (3 Of 21)

G08443656

Courtesy of NISSAN NORTH AMERICA, INC.

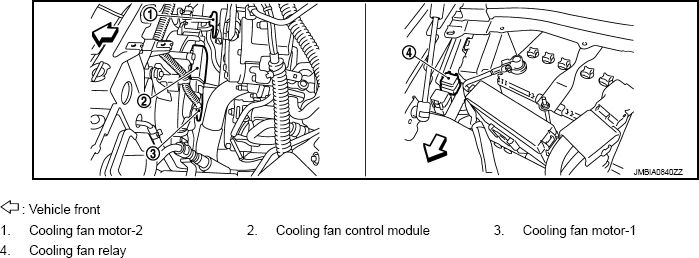

Fig 4: Fuel Filler Cap Warning System Component Parts Location (4 Of 21)

G08443657

Courtesy of NISSAN NORTH AMERICA, INC.

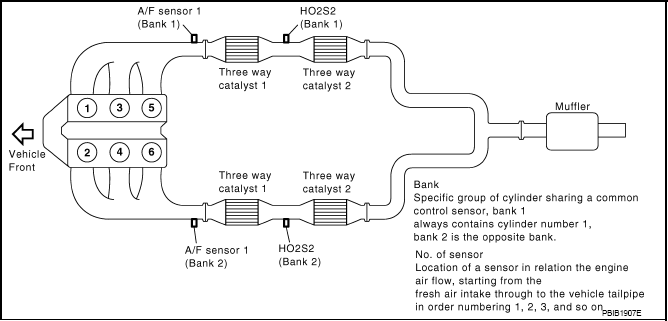

Fig 5: Fuel Filler Cap Warning System Component Parts Location (5 Of 21)

G08443658

Courtesy of NISSAN NORTH AMERICA, INC.

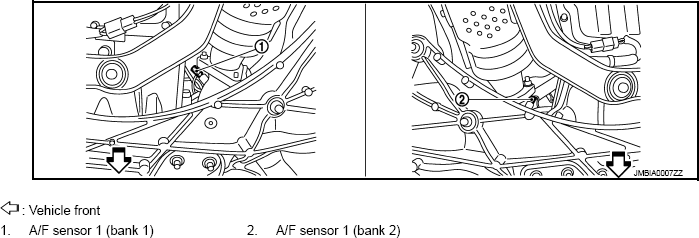

Fig 6: Fuel Filler Cap Warning System Component Parts Location (6 Of 21)

G08443659

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Fuel Filler Cap Warning System Component Parts Location (7 Of 21)

G08443660

Courtesy of NISSAN NORTH AMERICA, INC.

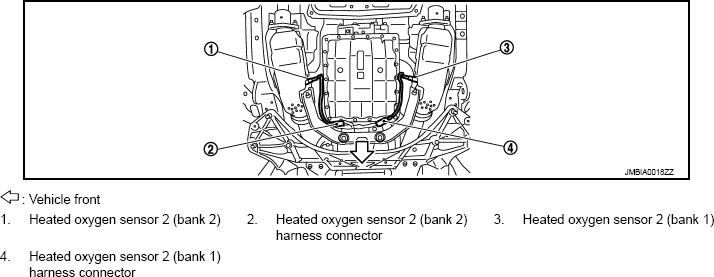

Fig 8: Fuel Filler Cap Warning System Component Parts Location (8 Of 21)

G08443661

Courtesy of NISSAN NORTH AMERICA, INC.

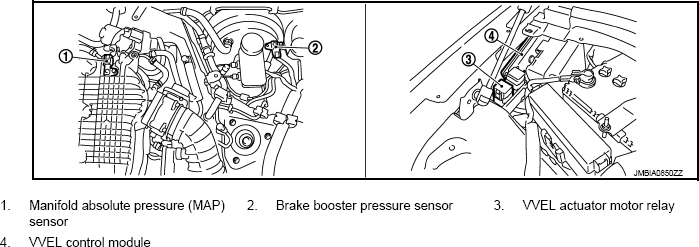

Fig 9: Fuel Filler Cap Warning System Component Parts Location (9 Of 21)

G08443662

Courtesy of NISSAN NORTH AMERICA, INC.

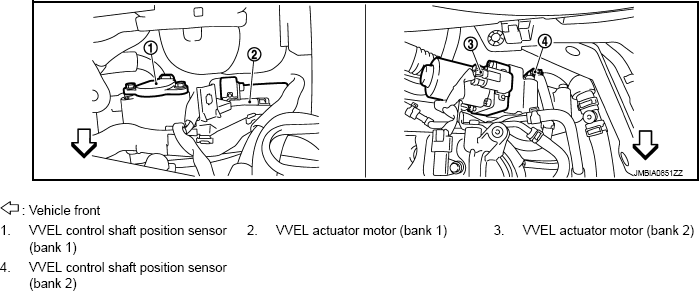

Fig 10: Fuel Filler Cap Warning System Component Parts Location (10 Of 21)

G08443663

Courtesy of NISSAN NORTH AMERICA, INC.

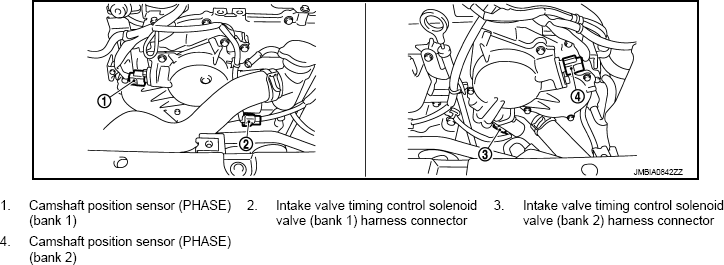

Fig 11: Fuel Filler Cap Warning System Component Parts Location (11 Of 21)

G08443664

Courtesy of NISSAN NORTH AMERICA, INC.

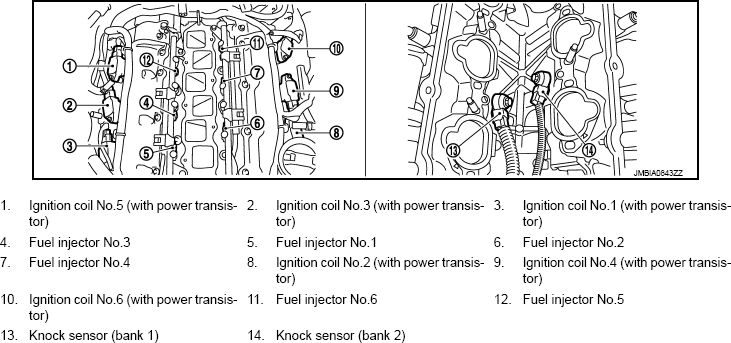

Fig 12: Fuel Filler Cap Warning System Component Parts Location (12 Of 21)

G08443665

Courtesy of NISSAN NORTH AMERICA, INC.

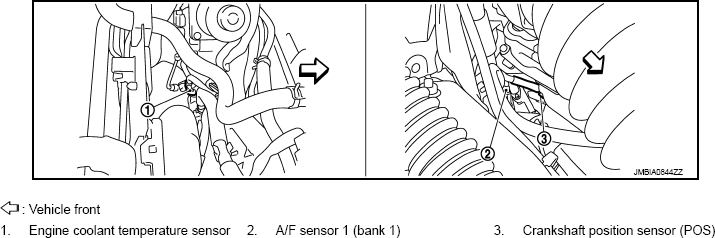

Fig 13: Fuel Filler Cap Warning System Component Parts Location (13 Of 21)

G08443666

Courtesy of NISSAN NORTH AMERICA, INC.

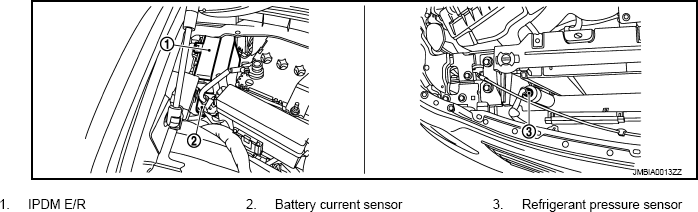

Fig 14: Fuel Filler Cap Warning System Component Parts Location (14 Of 21)

G08443667

Courtesy of NISSAN NORTH AMERICA, INC.

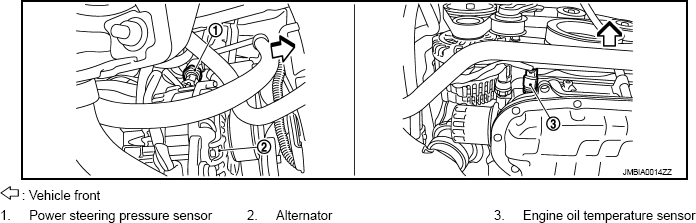

Fig 15: Fuel Filler Cap Warning System Component Parts Location (15 Of 21)

G08443668

Courtesy of NISSAN NORTH AMERICA, INC.

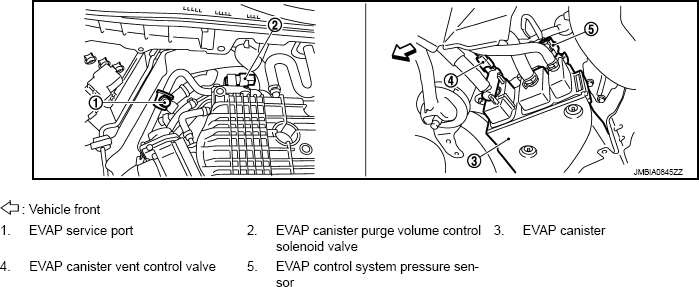

Fig 16: Fuel Filler Cap Warning System Component Parts Location (16 Of 21)

G08443669

Courtesy of NISSAN NORTH AMERICA, INC.

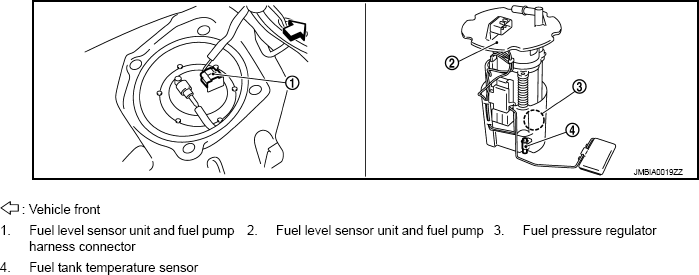

Fig 17: Fuel Filler Cap Warning System Component Parts Location (17 Of 21)

G08443670

Courtesy of NISSAN NORTH AMERICA, INC.

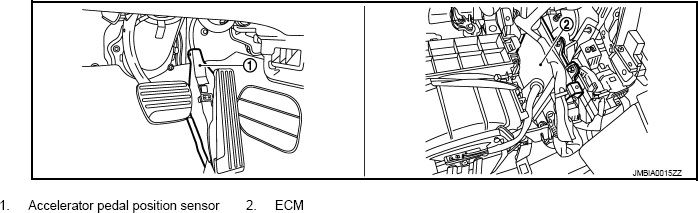

Fig 18: Fuel Filler Cap Warning System Component Parts Location (18 Of 21)

G08443671

Courtesy of NISSAN NORTH AMERICA, INC.

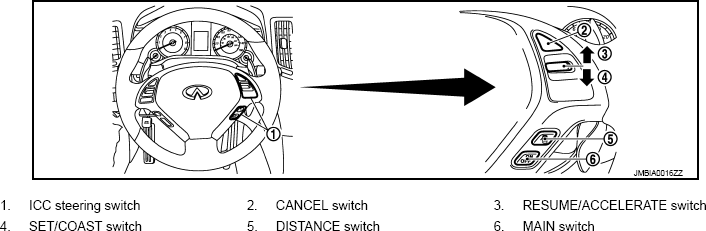

Fig 19: Fuel Filler Cap Warning System Component Parts Location (19 Of 21)

G08443672

Courtesy of NISSAN NORTH AMERICA, INC.

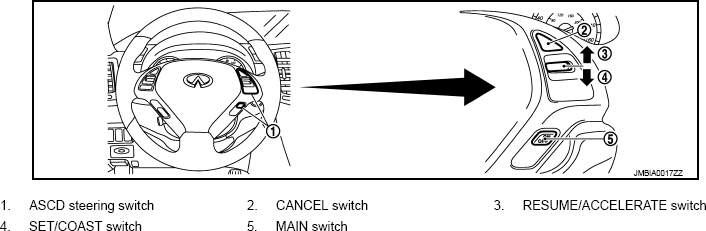

Fig 20: Fuel Filler Cap Warning System Component Parts Location (20 Of 21)

G08443673

Courtesy of NISSAN NORTH AMERICA, INC.

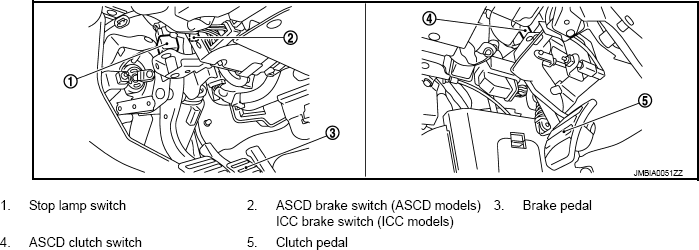

Fig 21: Fuel Filler Cap Warning System Component Parts Location (21 Of 21)

G08443674

Courtesy of NISSAN NORTH AMERICA, INC.
