System - Engine Mechanical & Other

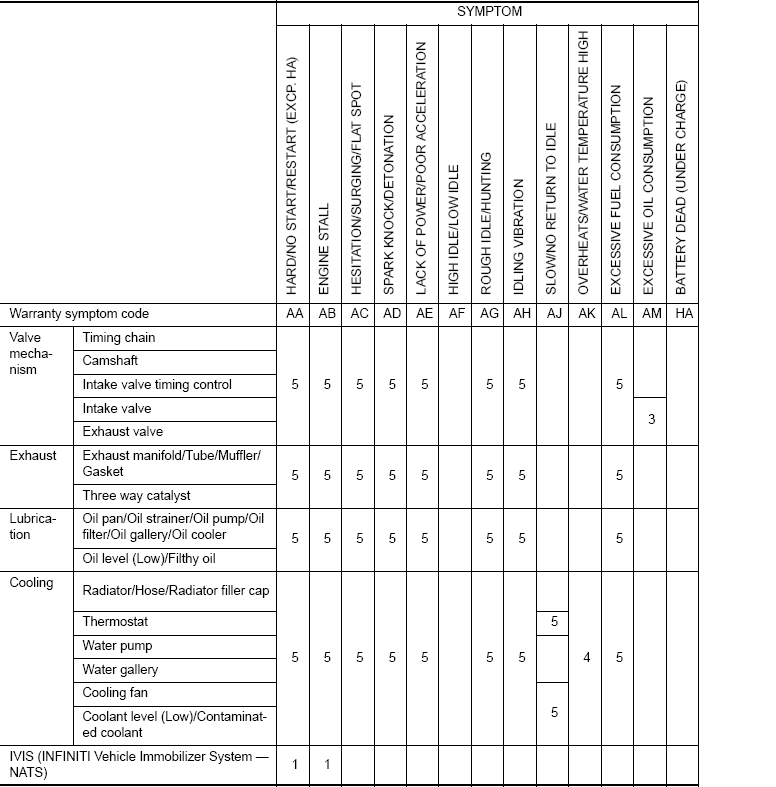

Fig 1: Other Engine Mechanical Symptoms Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

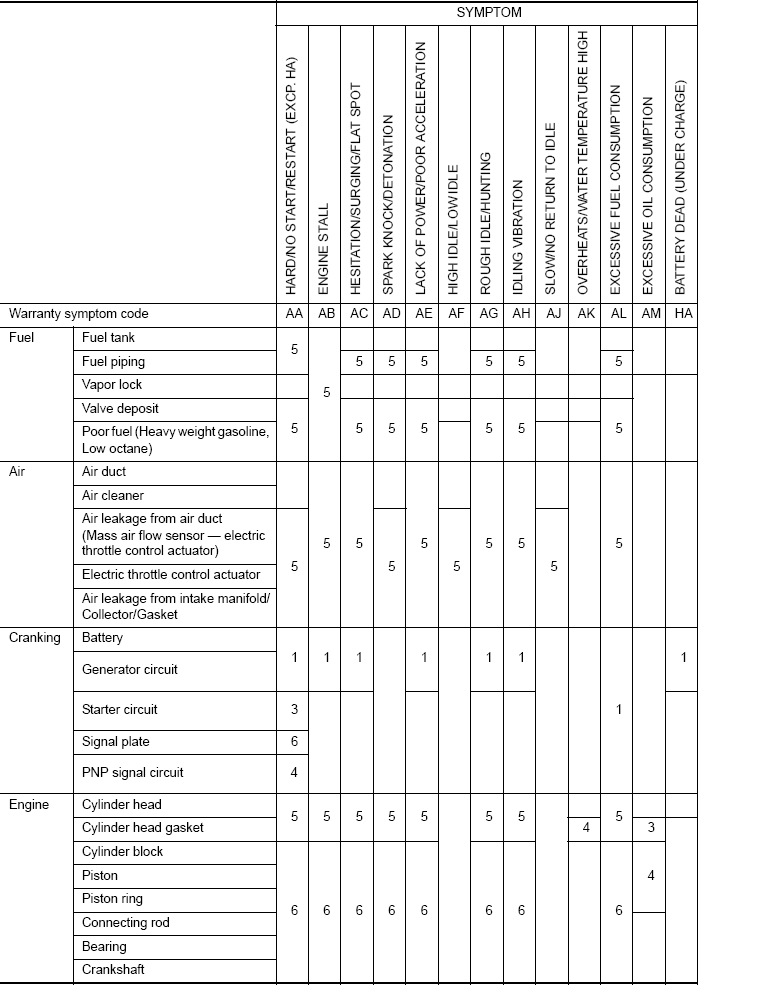

Fig 2: Other Engine Mechanical Symptoms Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1 - 6: The numbers refer to the order of inspection.
