Component Inspection

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

CHECK BATTERY CURRENT SENSOR

Turn ignition switch OFF.
Reconnect harness connectors disconnected.
Disconnect battery negative cable.

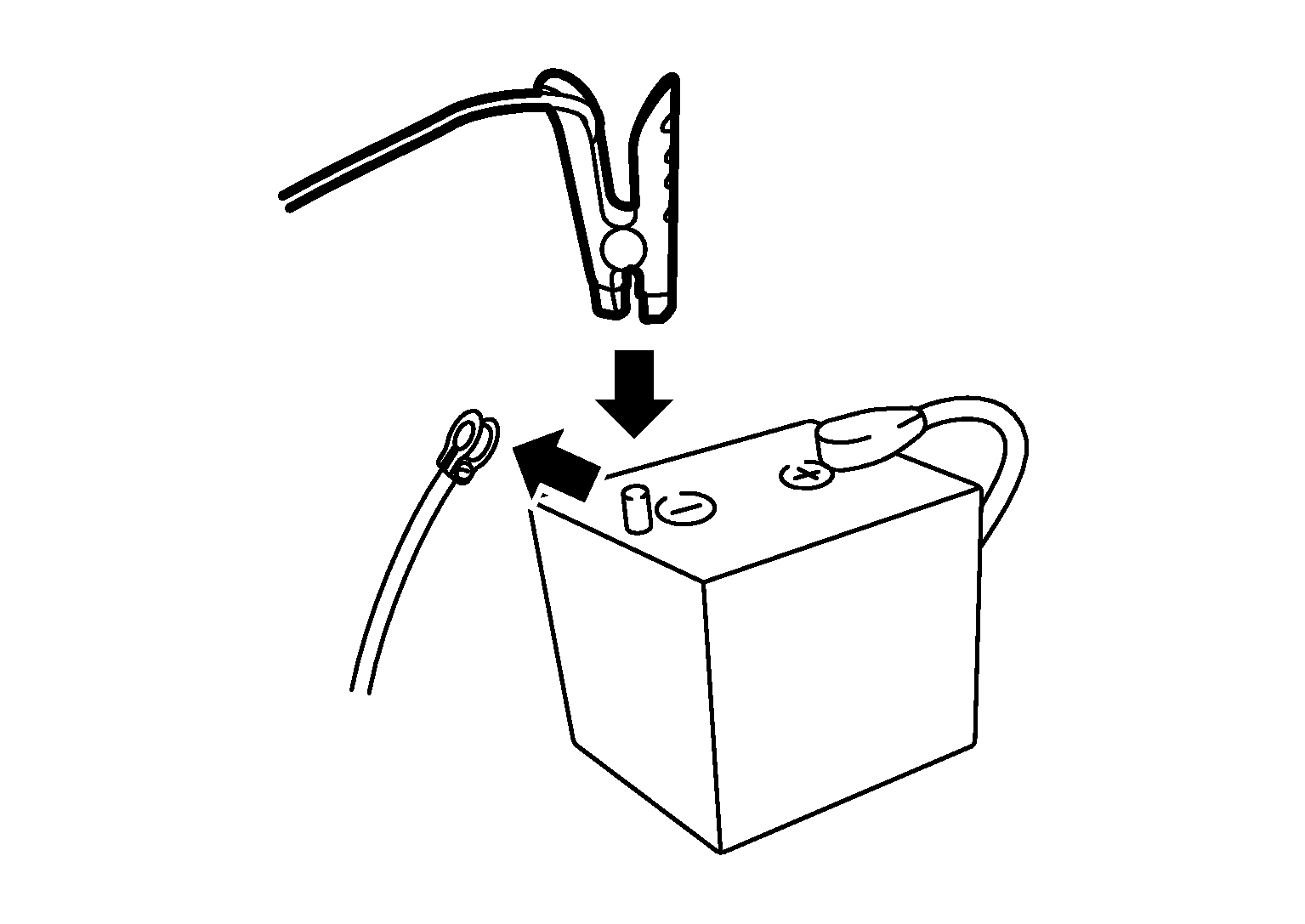

Install jumper cable between battery negative terminal and body ground.
Turn ignition switch ON.
Check the voltage between VCM harness connector terminals.

VOLTAGE REFERENCE CHART

VCM			Voltage (Approx.)
Connector	+	-
Connector	Terminal
E62	42 (Battery current sensor signal)	43	2.5 V

Fig 1: Checking Voltage Between VCM Harness Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to "HOW TO HANDLE 12V BATTERY ".

Is the inspection result normal?

YES: INSPECTION END

NO: Replace battery current sensor. Refer to "REMOVAL AND INSTALLATION ".
