Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument lower center cover. Refer to "REMOVAL AND INSTALLATION ".
  2. Press the tab and remove the AUX jack (A) in the direction of the arrow from the rear of the instrument lower center cover (B).

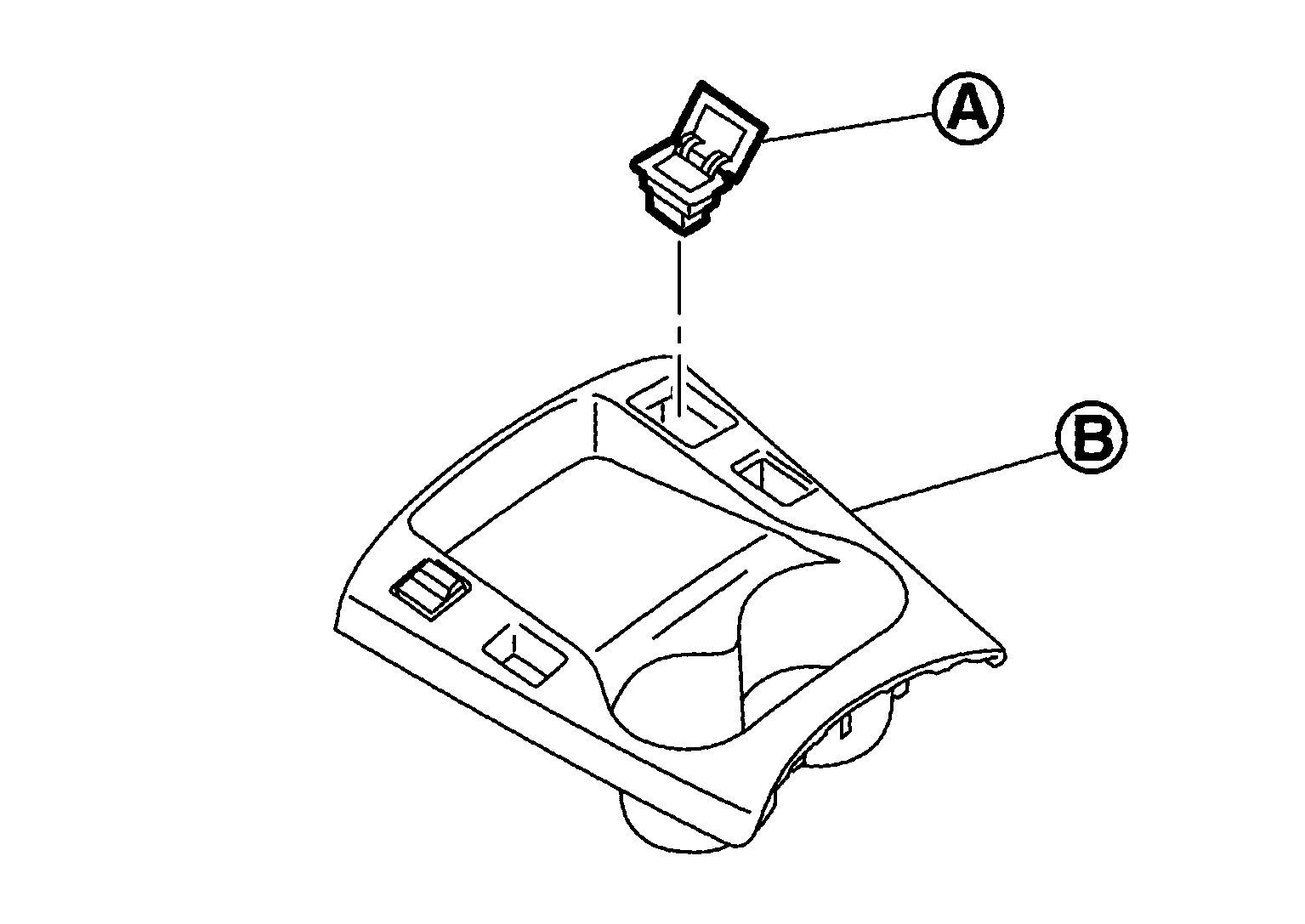

    Fig 1: Identifying AUX Jack And Instrument Lower Center Cover
    G07088421Courtesy of NISSAN MOTOR CO., U.S.A.
