Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear spoiler. Refer to "REMOVAL AND INSTALLATION ".
Remove solar cell module mounting nuts (A).

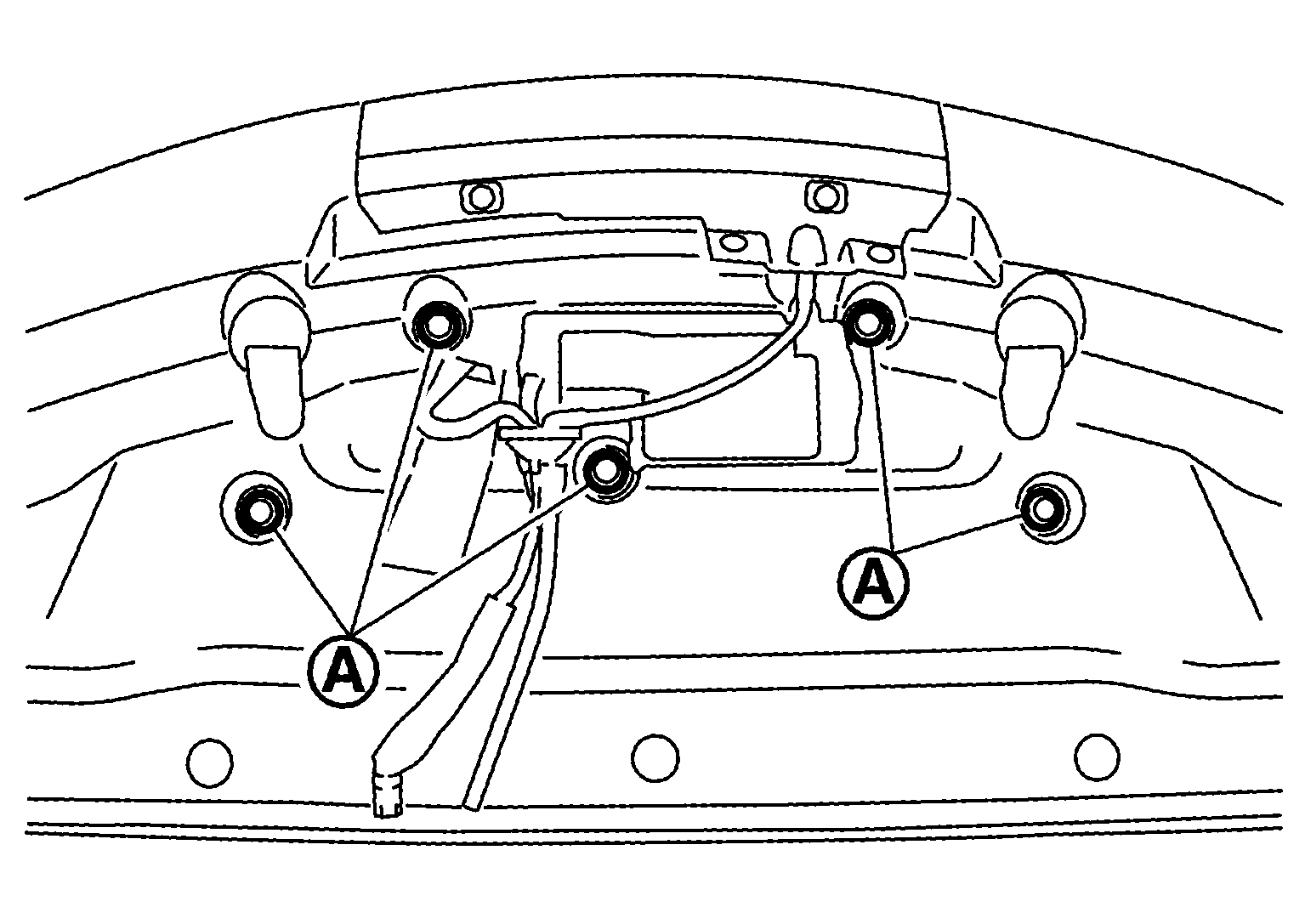

Fig 1: Identifying Solar Cell Module Mounting Nuts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove harness grommet (A), and then disconnect harness connector (B).

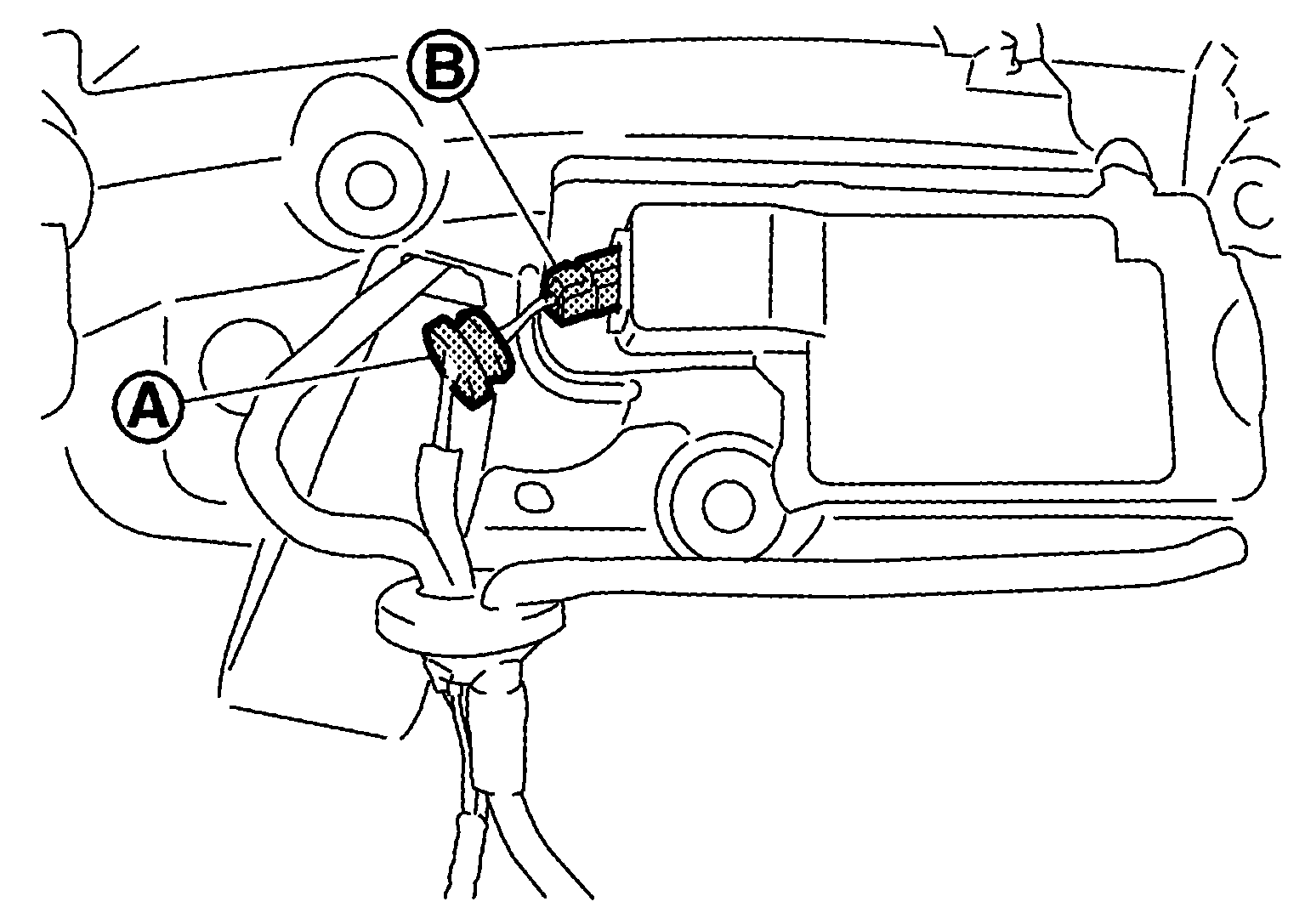

Fig 2: Identifying Harness Grommet And Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove solar cell module from rear spoiler.
