COUPE : Exploded View

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

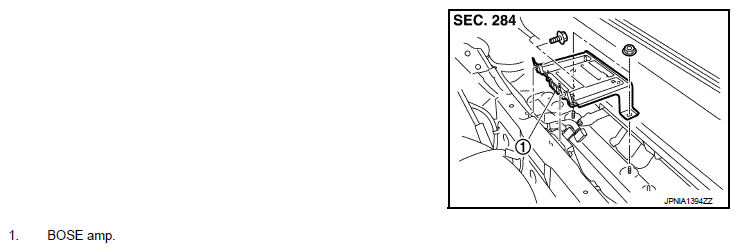

Fig 1: Identifying Bose Amp (COUPE)
G07103748Courtesy of NISSAN MOTOR CO., U.S.A.

DISASSEMBLY

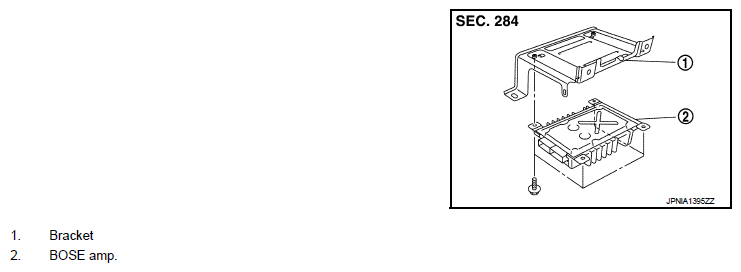

Fig 2: Identifying Bose Amp (COUPE) Components
G07103749Courtesy of NISSAN MOTOR CO., U.S.A.
