Wiring Diagram - IPDM E/R -

WARNING: This page is about a different car, the 2011 Infiniti G37. However, it is still accessible from the selected car via links, so may be relevant.

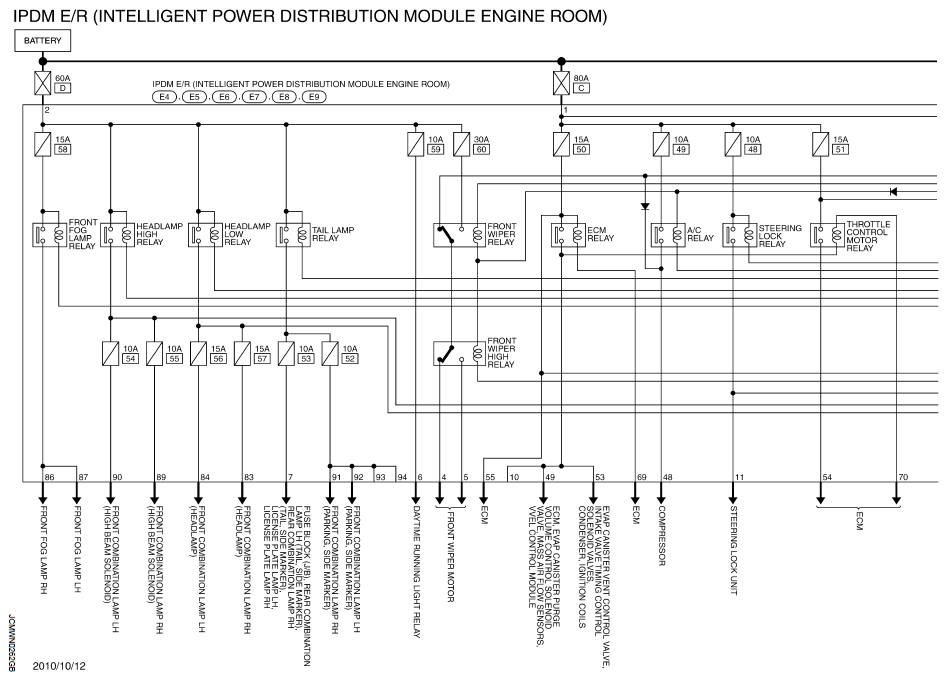

Fig 1: IPDM E/R Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

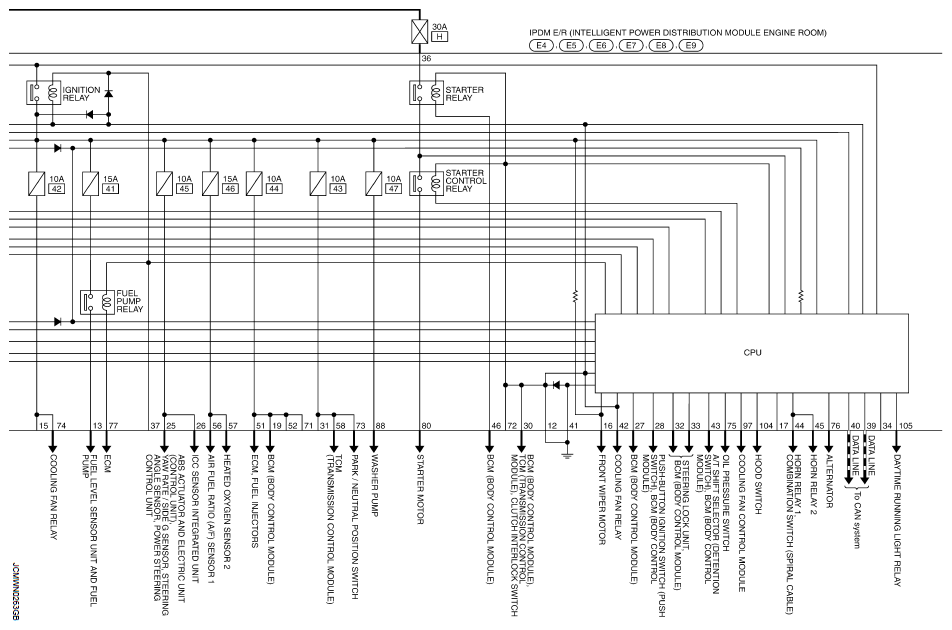

Fig 2: IPDM E/R Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

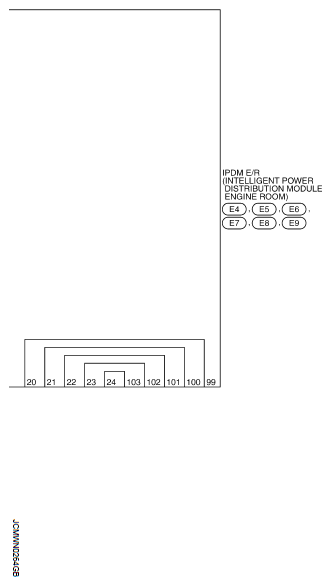

Fig 3: IPDM E/R Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

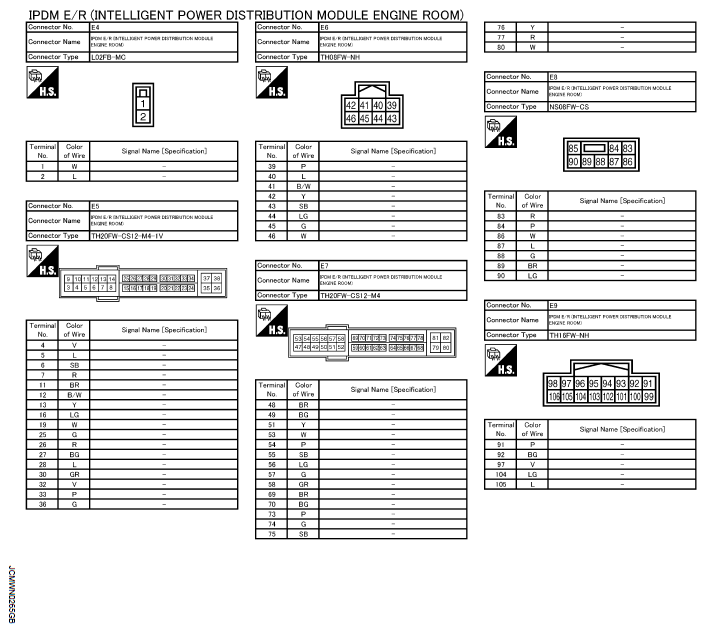

Fig 4: IPDM E/R Connector Terminal End Views

Courtesy of NISSAN MOTOR CO., U.S.A.
