Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Infiniti G37. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery cable from the negative terminal.
Remove the cowl top cover (RH). Refer to "EXPLODED VIEW ".
Pull up the IPDM E/R assembly while pressing the pawls (A) on the back of the IPDM E/R cover B (1).

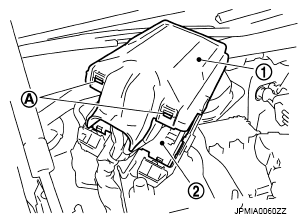

Fig 1: Identifying IPDM E/R Cover And Pawls
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the IPDM E/R cover A (1). While pressing the pawls (A) at the lower end of the IPDM E/R cover A
Disconnect the harness connector and remove the IPDM E/R (2).

Fig 2: Identifying IPDM E/R With Cover And Pawls
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the bolts (A) and remove the bracket (1) from the vehicle.

Fig 3: Identifying IPDM E/R Bolts And Bracket
Courtesy of NISSAN NORTH AMERICA, INC.
