CAN Communication Signal Chart

WARNING: This page is about a different car, the 2010 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Refer to "HOW TO USE CAN COMMUNICATION SIGNAL CHART " for how to use CAN communication signal chart.

NOTE: Refer to "ABBREVIATION LIST " for the abbreviations of the connecting units.

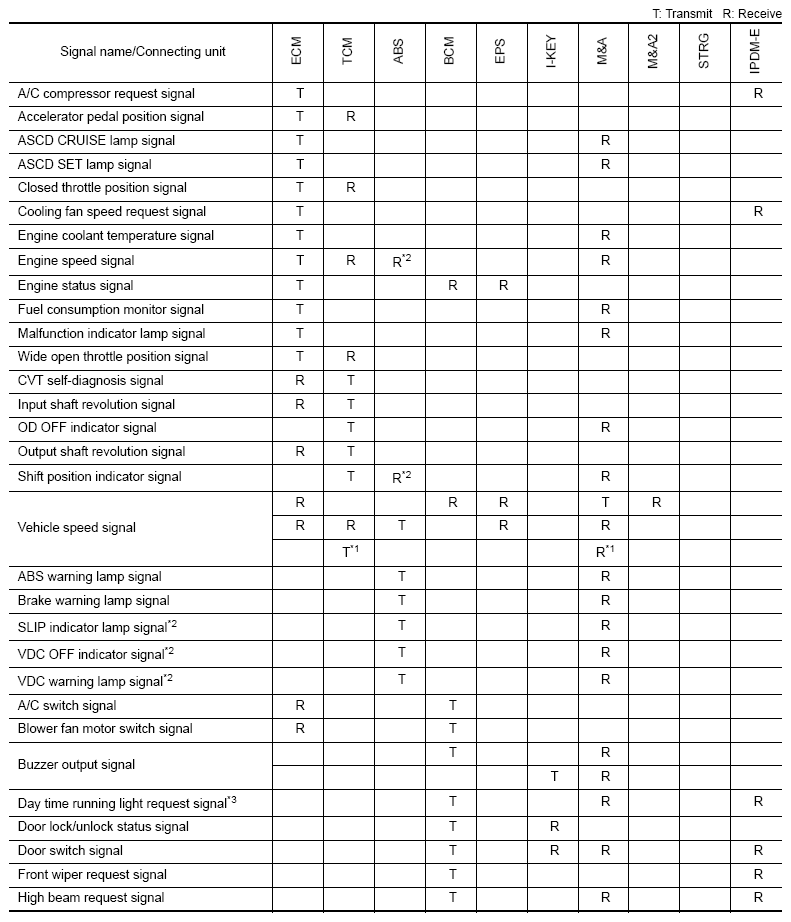

Fig 1: CAN Communication Signal Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

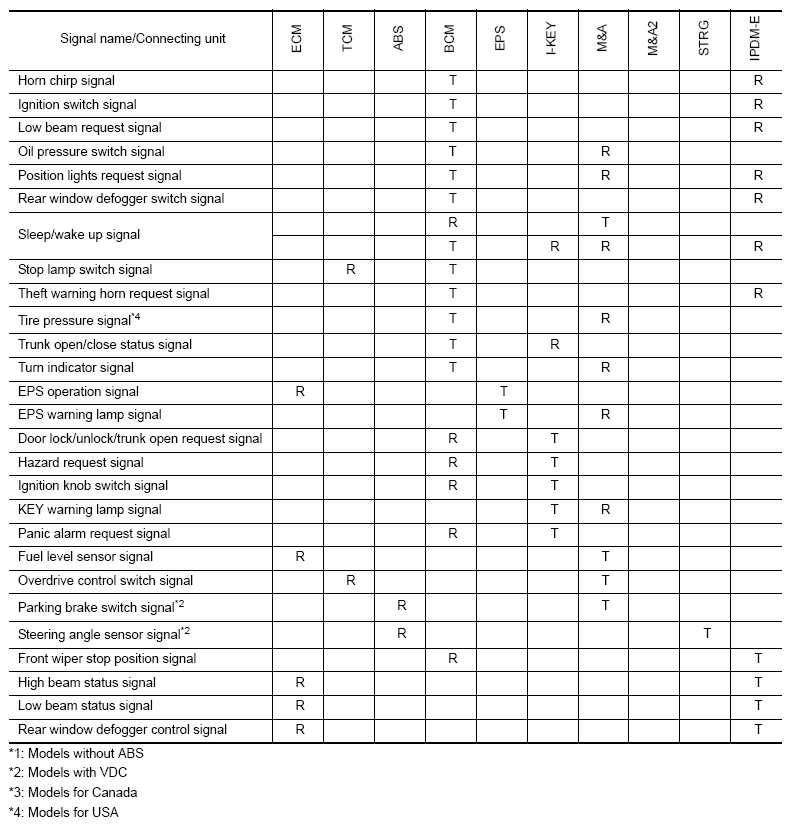

Fig 2: CAN Communication Signal Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

*1: Models without ABS

*2: Models with VDC

*3: Models for Canada

*4: Models for USA

NOTE: CAN data of the air bag diagnosis sensor unit is not used by usual service work, thus it is omitted.
