WARNING: This page is about a different car, the 2010 Infiniti G37. However, it is still accessible from the selected car via links, so may be relevant.

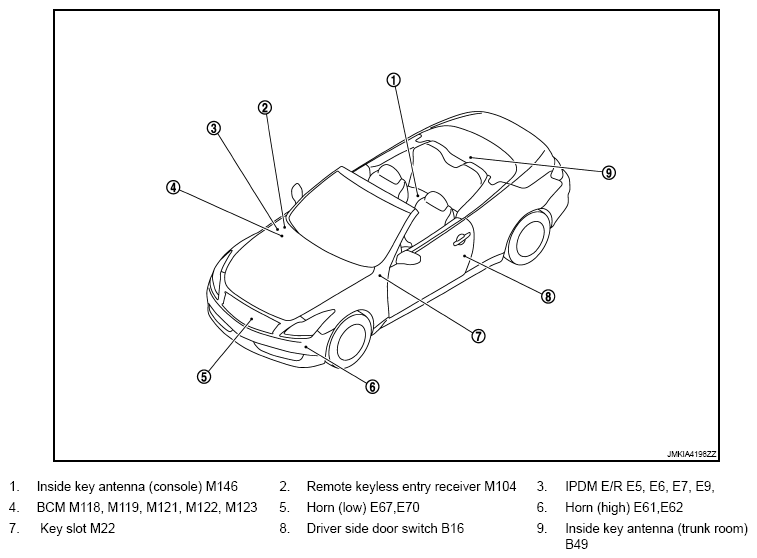

Fig 1: Identifying Intelligent Key System Component Parts Location (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

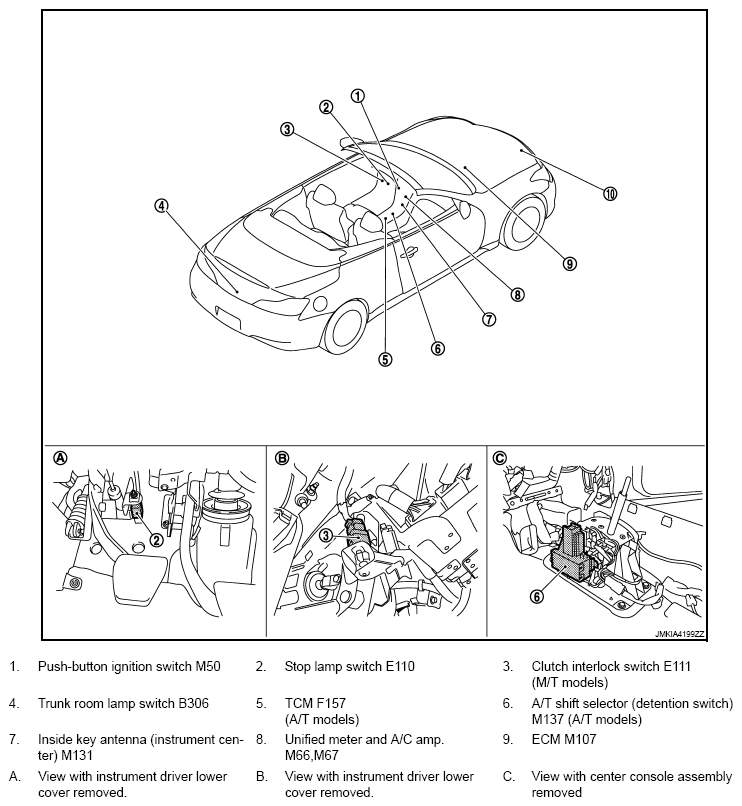

Fig 2: Identifying Intelligent Key System Component Parts Location (2 Of 2)
