CAN Communication Signal Chart

WARNING: This page is about a different variant/trim than selected.

Refer to "HOW TO USE CAN COMMUNICATION SIGNAL CHART " for how to use CAN communication signal chart.

NOTE: Refer to "ABBREVIATION LIST " for the abbreviations of the connecting units.

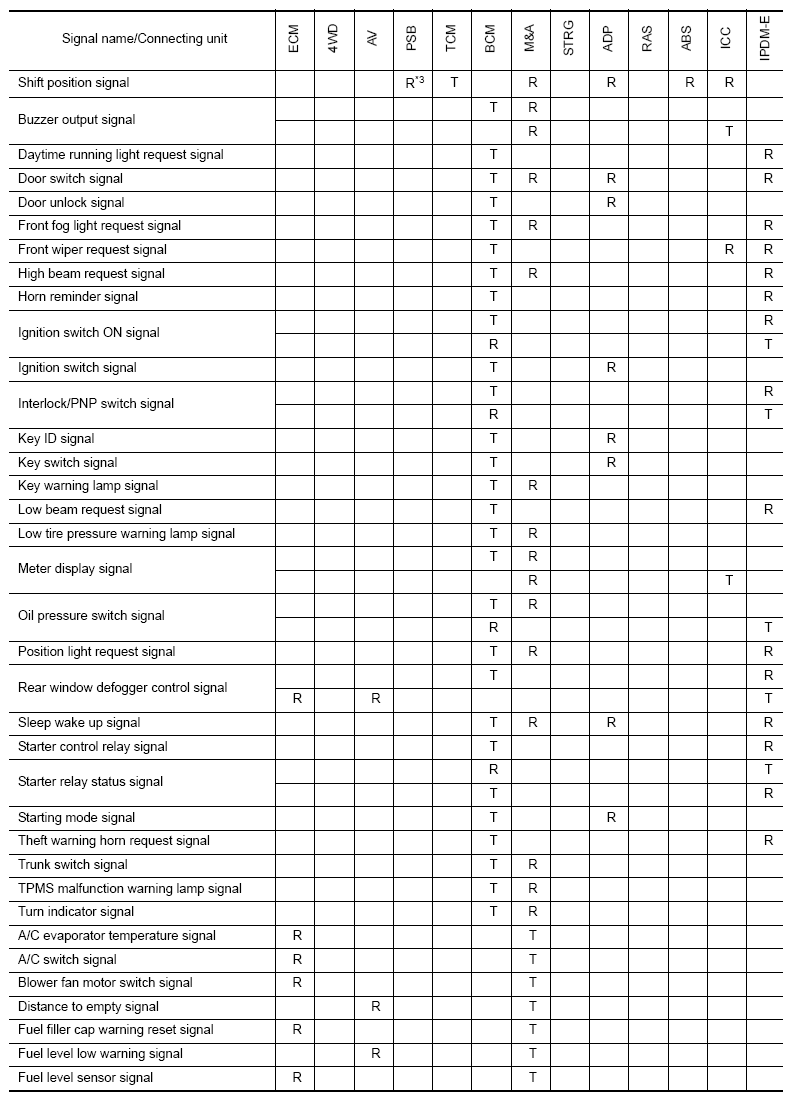

Fig 1: CAN Communication Signal Chart (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

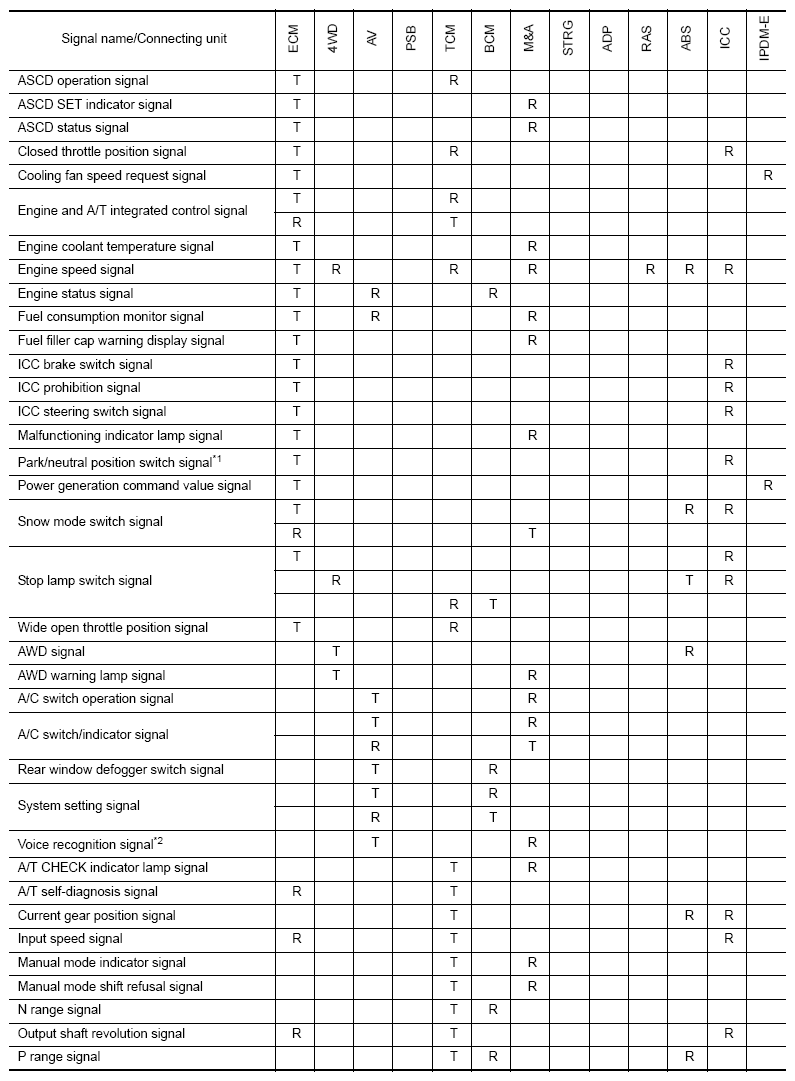

Fig 2: CAN Communication Signal Chart (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

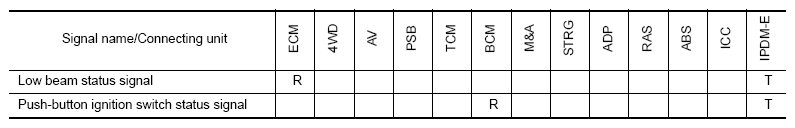

Fig 3: CAN Communication Signal Chart (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

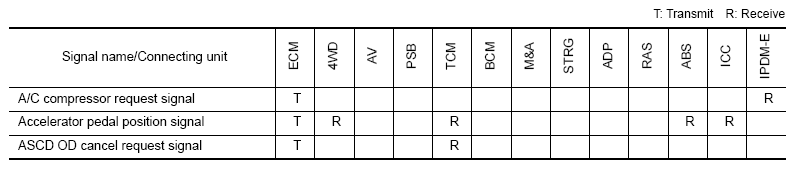

Fig 4: CAN Communication Signal Chart (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

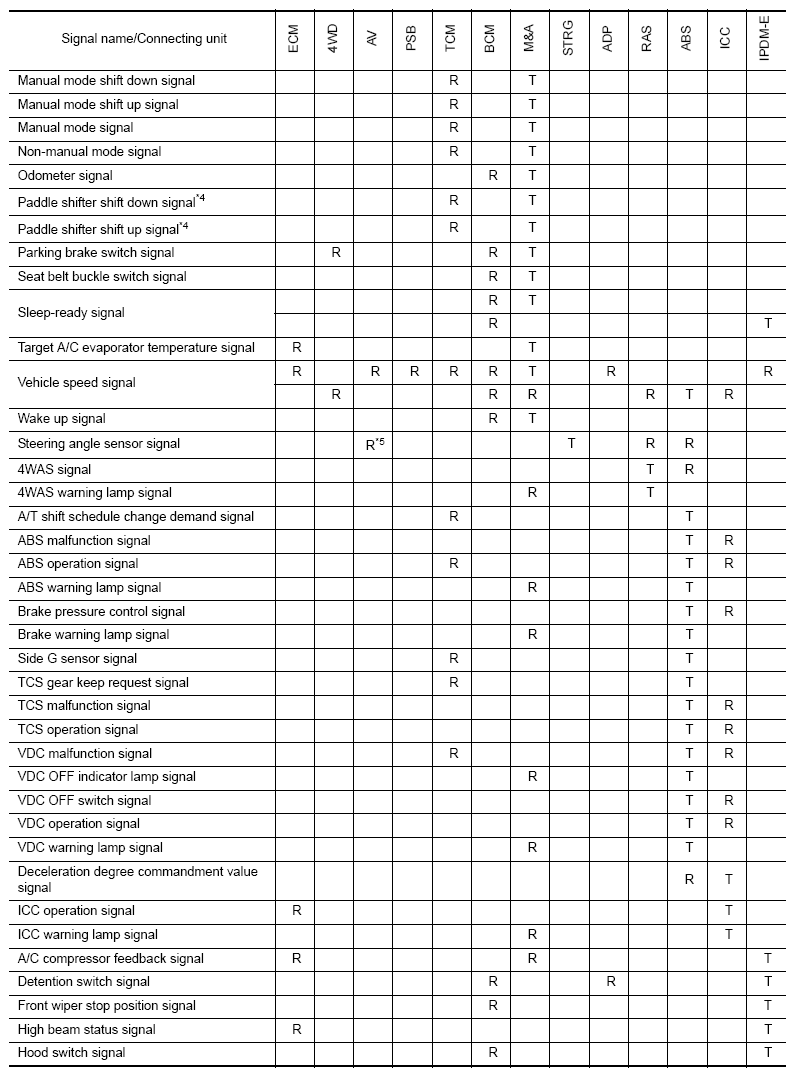

Fig 5: CAN Communication Signal Chart (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

*1: M/T models only

*2: Models with navigation system

*3: Receive reverse position signal only

*4: Models with paddle shifter

*5: Models with rear view monitor

NOTE: CAN data of the air bag diagnosis sensor unit is not used by usual service work, thus it is omitted.
