Wiring Diagram - PDS (POWER DISTRIBUTION SYSTEM) -

WARNING: This page is about a different variant/trim than selected.

For connector terminal arrangements, harness layouts, and alphabets (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

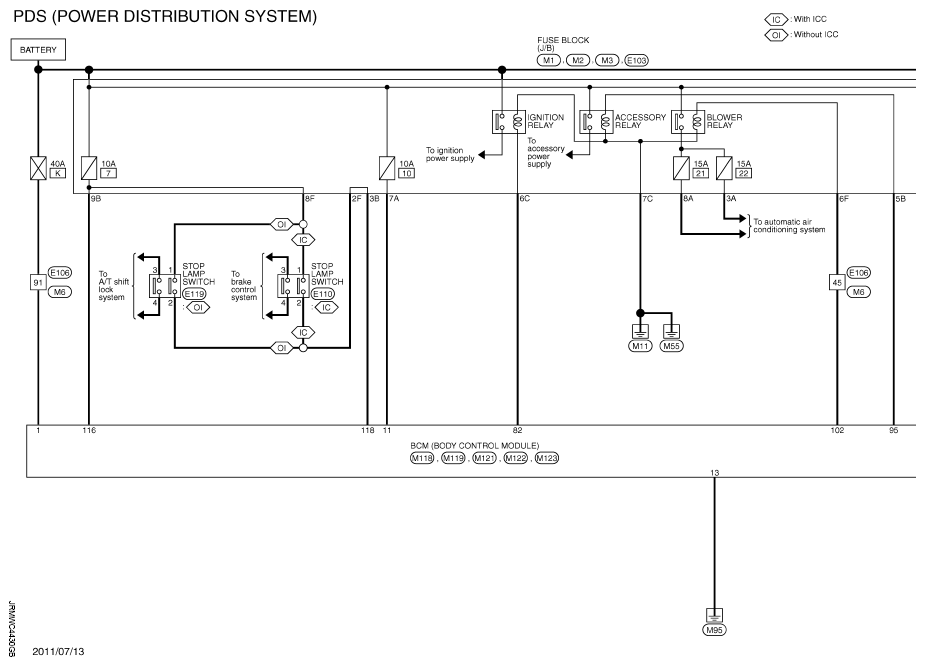

Fig 1: Power Distribution System - Wiring Diagram (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

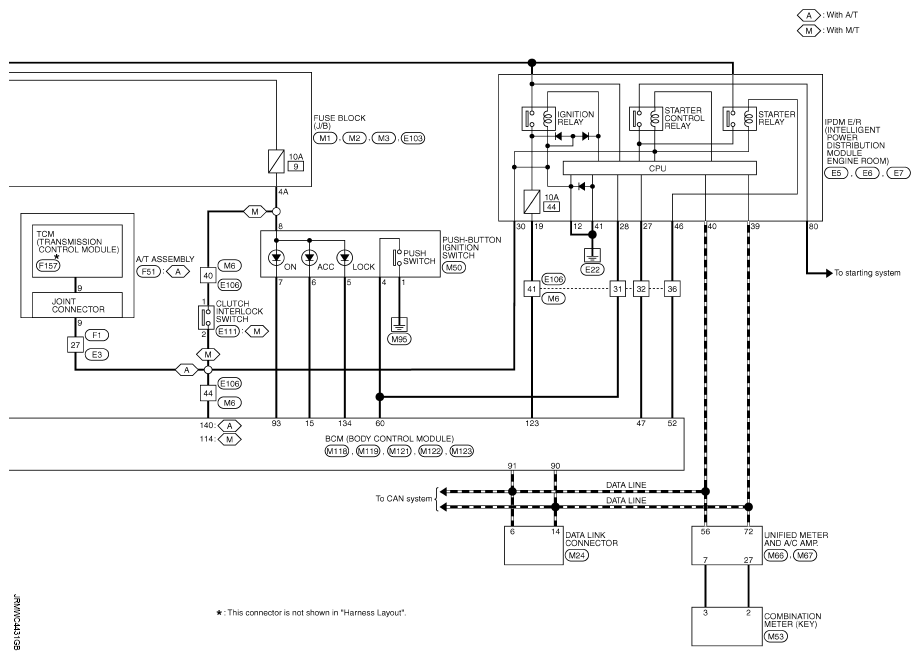

Fig 2: Power Distribution System - Wiring Diagram (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
