How to Use CAN Communication Signal Chart

WARNING: This page is about a different variant/trim than selected.

The CAN communication signal chart lists the signals needed for trouble diagnosis. It is useful for detecting the root cause by finding a signal related to the symptom, and by checking transmission and reception unit.

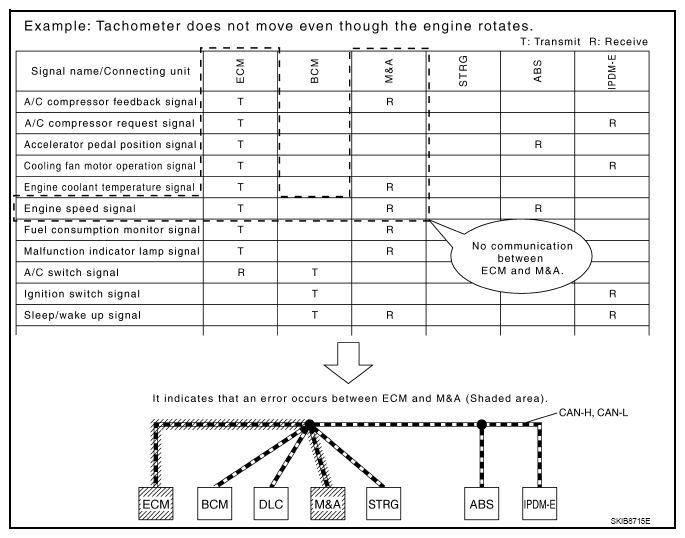

Fig 1: Identifying CAN Communication Signal Chart (Example)
G07010153Courtesy of NISSAN NORTH AMERICA, INC.
