Exploded View: Removal

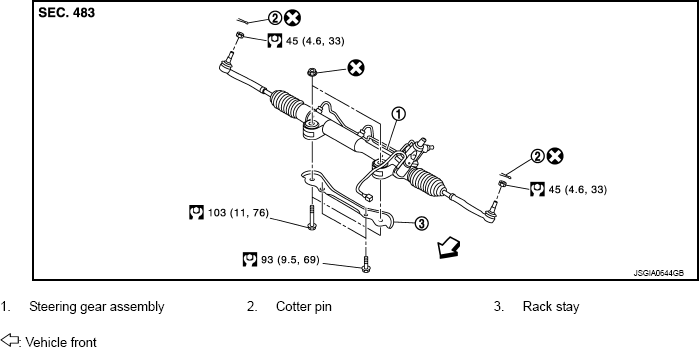

Fig 1: Steering Gear And Linkage Replacement Components With Torque Specifications
G08444008Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
