During Shift Change

The necessary and adequate line pressure for shift change is set. For this reason, line pressure pattern setting corresponds to engine torque and gearshift selection. Also, line pressure characteristic corresponds to engine speed, during engine brake operation.

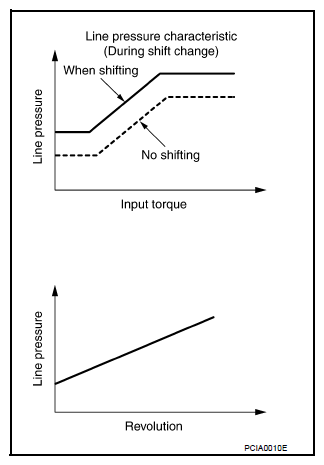

Fig 1: Identifying Line Pressure Characteristics During Shift Change
G07013417Courtesy of NISSAN NORTH AMERICA, INC.
