Exploded View: Disassembly

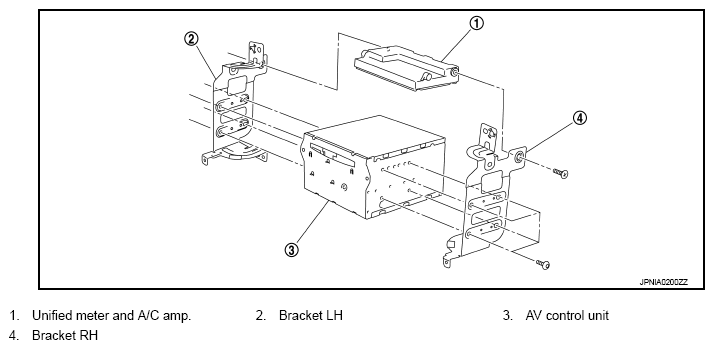

Fig 1: Exploded View Of AV Control Unit
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
