SOFTWARE UPDATE (AV CONTROL UNIT) : Work Procedure

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.
  1. START OF CONFIRMATION/ADJUSTMENT MODE
    1. Set the power switch on ACC.
    2. With AUDIO OFF, press "MAP" switch three times, switch twice, and press "MAP" switch once to start the On Board Diagnosis Function.
      Fig 1: Pressing Map Switch
      G07088353Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Select "Software Update" in Confirmation/Adjustment mode.

      GO TO 2.

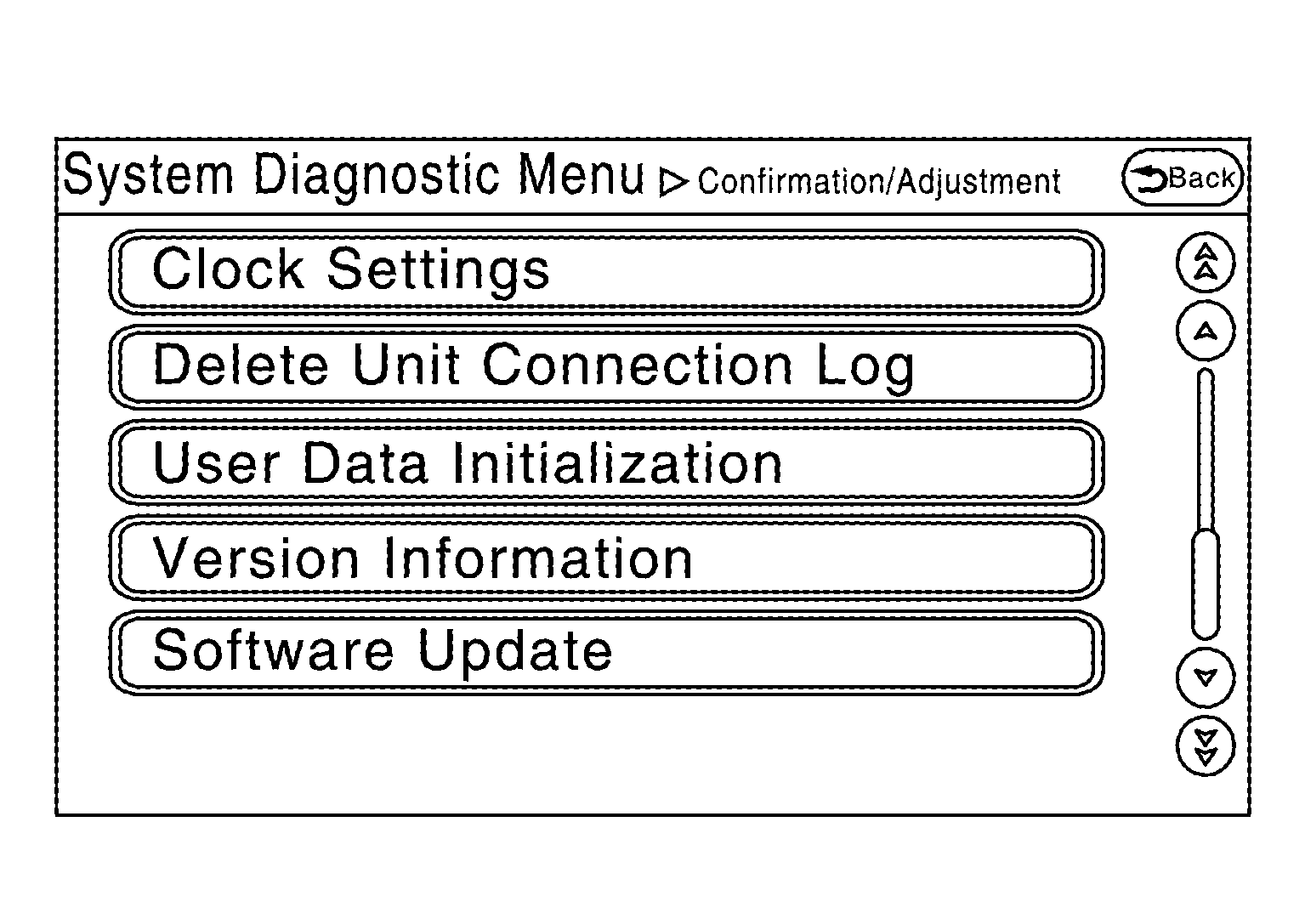

      Fig 2: Selecting Software Update In Confirmation/Adjustment Mode
      G07088401Courtesy of NISSAN MOTOR CO., U.S.A.
  2. UPDATE THE SOFTWARE OF THE AV CONTROL UNIT
    1. "Please insert SD Card for the program update and Push OK button" pops up.
      Fig 3: Display Software Updating Screen
      G07088372Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Press the OPEN/TILT switch of the AV control unit to open the display.
    3. Remove the cover of the SD slot and insert the SD card for software update into the SD card sub-slot (on the left).
      NOTE: Leave the map SD card inserted in the main slot (on the right).
    4. Press the OPEN/TILT switch of the AV control unit to close the display.
    5. Select "OK" in the pop-up confirmation to start software update.
      NOTE: The instructions below must be followed during software update.
      • Never turn the power switch OFF.
      • Never remove the SD card.
      • Never use other functions. They are not available.

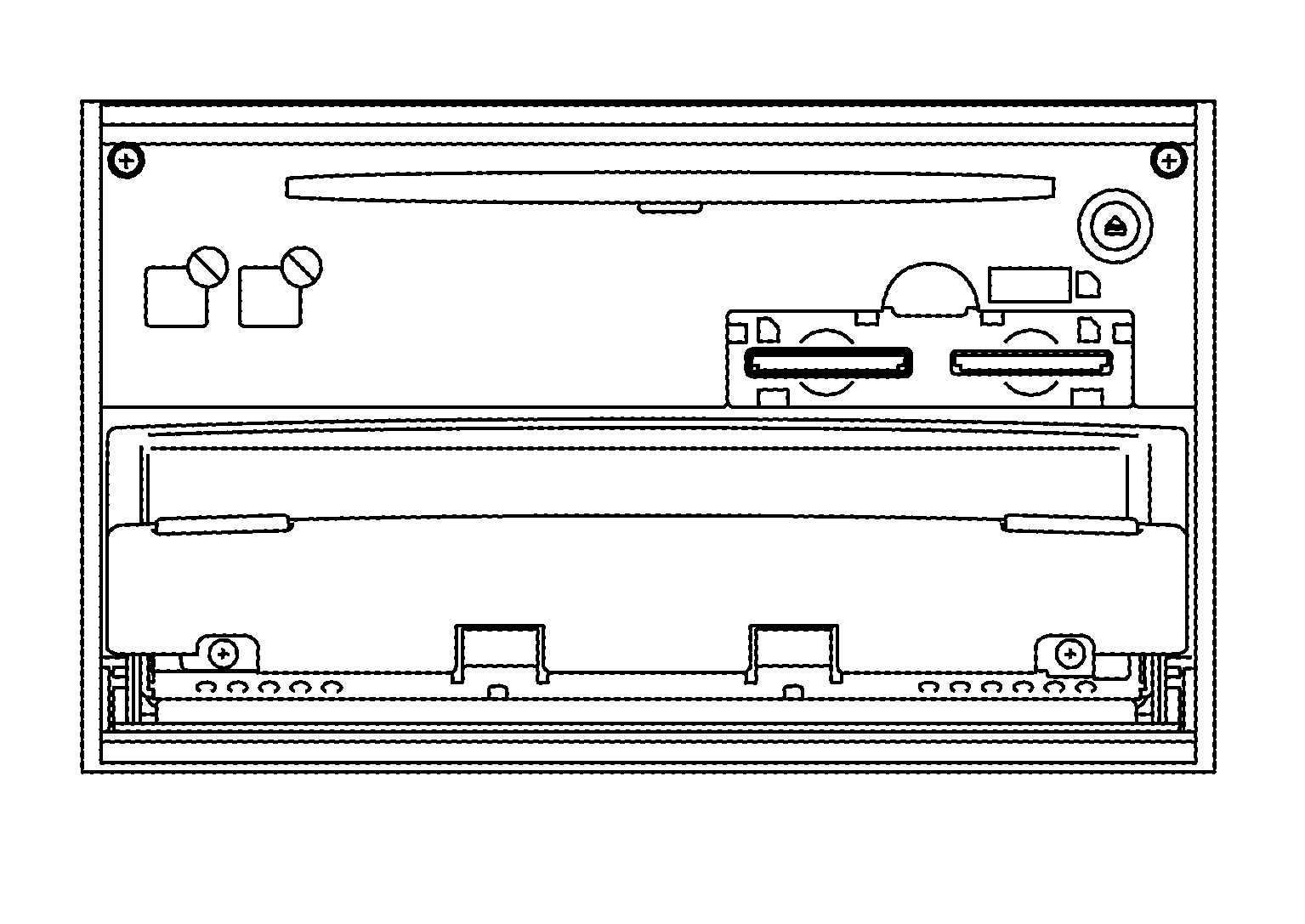

        Fig 4: [Display Open/Tilt Switch Of AV Control Unit]
        G07088403Courtesy of NISSAN MOTOR CO., U.S.A.
    6. When the software update is complete, "The update of the program completed successfully. Please switch the power off and on again to reboot." is shown.
    7. Press the OPEN/TILT switch of the AV control unit to open the display.
    8. Remove the SD card for software update from the SD card sub-slot (on the left) and install the cover of the SD slot.
    9. Turn the power switch OFF.

      GO TO 3.

  3. CHECK THE UPDATED SOFTWARE VERSION OF THE AV CONTROL UNIT
    1. Set the power switch on ACC after a lapse of 15 seconds or more after the power switch is turned OFF.
    2. With AUDIO OFF, press "MAP" switch three times, switch twice, and press "MAP" switch once to start the On Board Diagnosis Function.
    3. Select "Version Information" in Confirmation/Adjustment mode.
    4. Check version information to see that the Boot ware and the application version are updated.

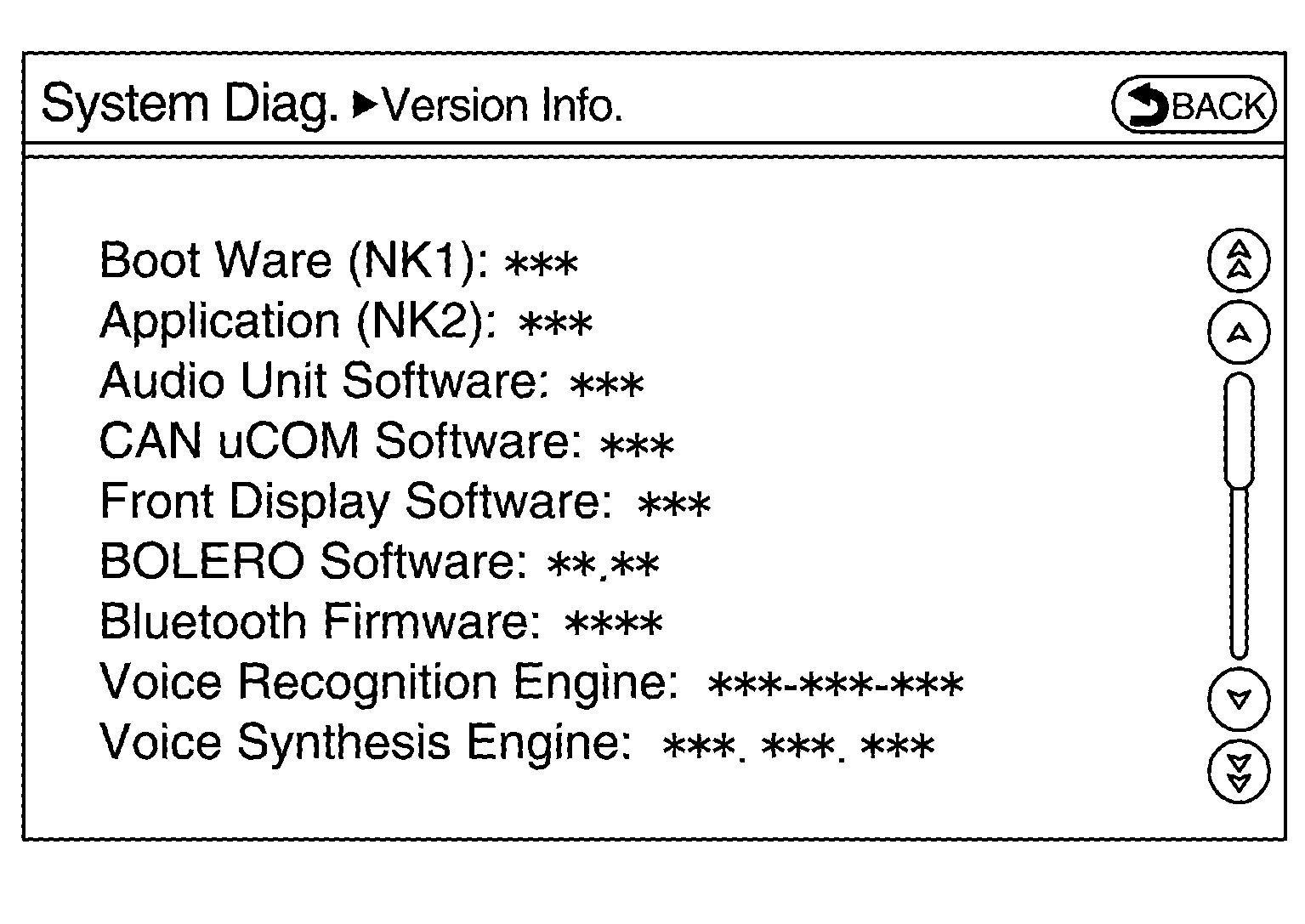

      Fig 5: Display Version Information
      G07088404Courtesy of NISSAN MOTOR CO., U.S.A.

      End of program.
