Component Inspection
WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

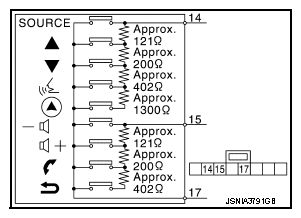

Measure the resistance between the steering switch connector terminals 14 to 17 and 15 to 17.
Standard,:
Between terminals 14 and 17
switch ON : 2003 - 2043 Ω
switch ON : 716 - 730 Ω
switch ON : 318 - 324 Ω
switch ON : 120 - 122 Ω
SOURCE switch ON : 0 Ω
Between terminals 15 and 17
switch ON : 716 - 730 Ω
switch ON : 318 - 324 Ω
switch ON : 120 - 122 Ω
switch ON : 0 Ω
