The on board diagnosis function has a self-diagnosis mode for conducting trouble diagnosis automatically and a confirmation/adjustment mode for operating manually.
Self-diagnosis mode performs the diagnosis at the AV control unit, connections between each unit that composes the system, and connections between AV control unit and GPS antenna. It displays the results on the display.
The confirmation/adjustment mode allows the technician to check, modify or adjust the vehicle signals and set values, as well as to monitor the system error records and system communication status. The check, modify or adjust actions generally require human intervention and judgment (the system cannot judge automatically).

MODE DESCRIPTION CHART

Mode			Description
Self Diagnosis			AV control unit diagnosis. Diagnoses the connections across system components, between AV control unit and GPS antenna.
Confirmation/Adjustment	Display Diagnosis		The following check functions are available: color tone check by color bar display and white display, light and shade check by gray scale display and touch panel calibration response check.
	Vehicle Signals		Diagnosis of signals can be performed for vehicle speed, parking brake, lights, power switch and reverse.
	Navigation	Steering Angle Adjustment	When there is a difference between the actual turning angle and the vehicle mark turning angle, it can be adjusted.
		Speed Calibration	When there is a difference between the current location mark and the actual location, it can be adjusted.
		Sensor infomation	Displays the reception status of the GPS antenna connector.
		XM SAT Subscription Status	The XM NavTraffic subscription status can be checked.
	Error location display		The system malfunction and the frequency when occurring in the past are displayed. When the malfunctioning item is selected, the time and place that the selected malfunction last occurred are displayed.
	AV COMM Diagnosis		The communication condition of each unit of Multi AV system can be monitored.
	Hands-free Phone, CARWINGS		The received volume adjustment of hands-free phone and microphone speaker check can be performed. Mileage display of remote maintenance can be turned ON/OFF.
	Camera		The signal connected to camera control unit can be checked and the guiding line position that overlaps rear view camera image can be adjusted.
	Clock setting		The current time can be set.
	Delete Unit Connection Log		Erase the connection history of unit and error history.
	User Data Initialisation		Initializes the AV control unit memory.
	Version Information		Version information of the AV control unit is displayed.
	XM	Change Channel	Any necessary channels required to receive traffic information etc. from the satellite radio system can be set.
		Change Application ID	Any application ID'-s required to receive traffic information etc. from the satellite radio system can be set.
		Diag	XM authentication diagnosis.

Starting procedure

Turn the power switch ON.
Turn the audio system off.

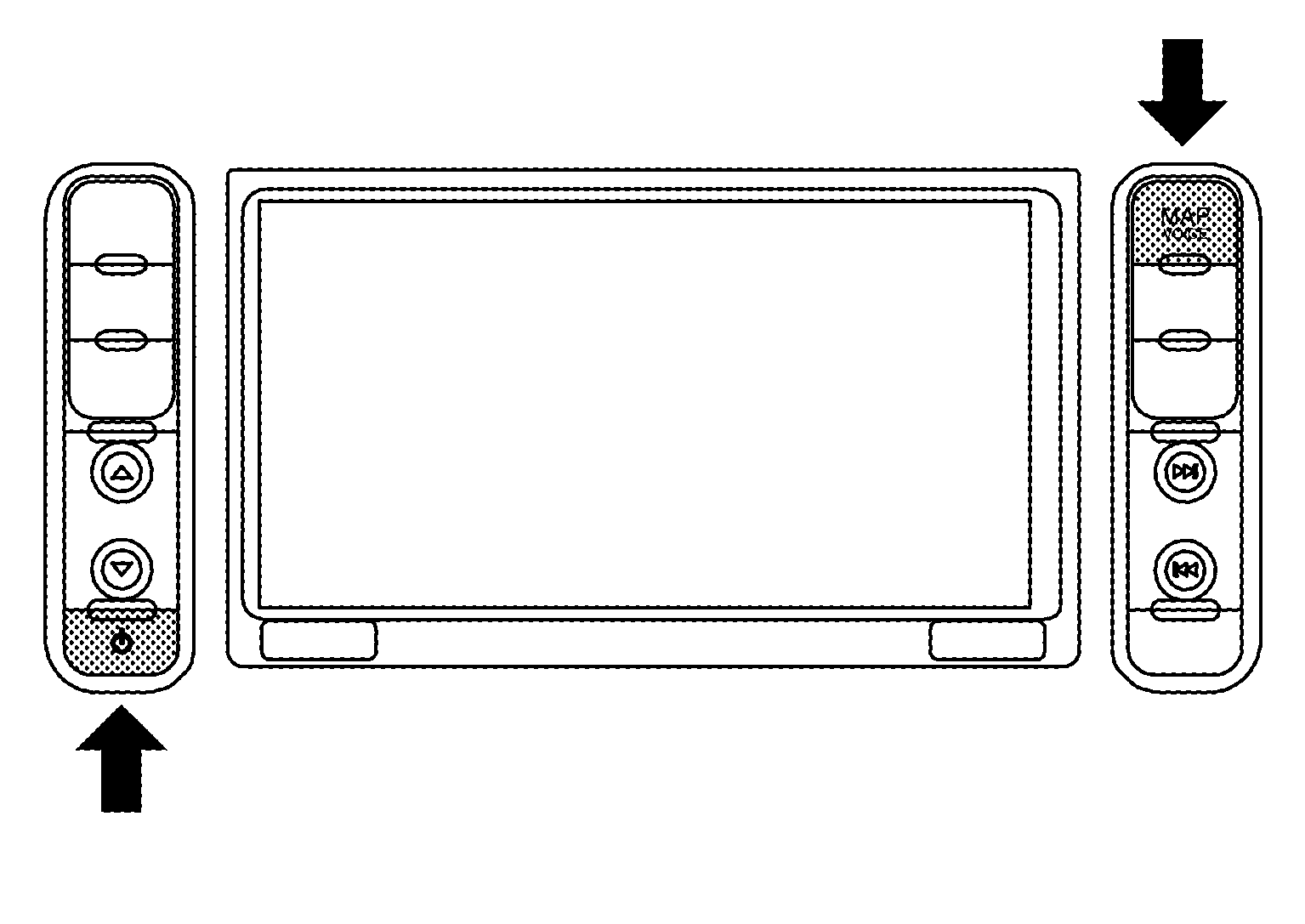

Press the "MAP" switch 3 times. Press the "PWR" switch 2 times. Press the "MAP" switch once.
NOTE: If the on board self-diagnosis does not start, perform diagnosis using CONSULT. Refer to "CONSULT FUNCTION ".

Fig 1: Pressing Map Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

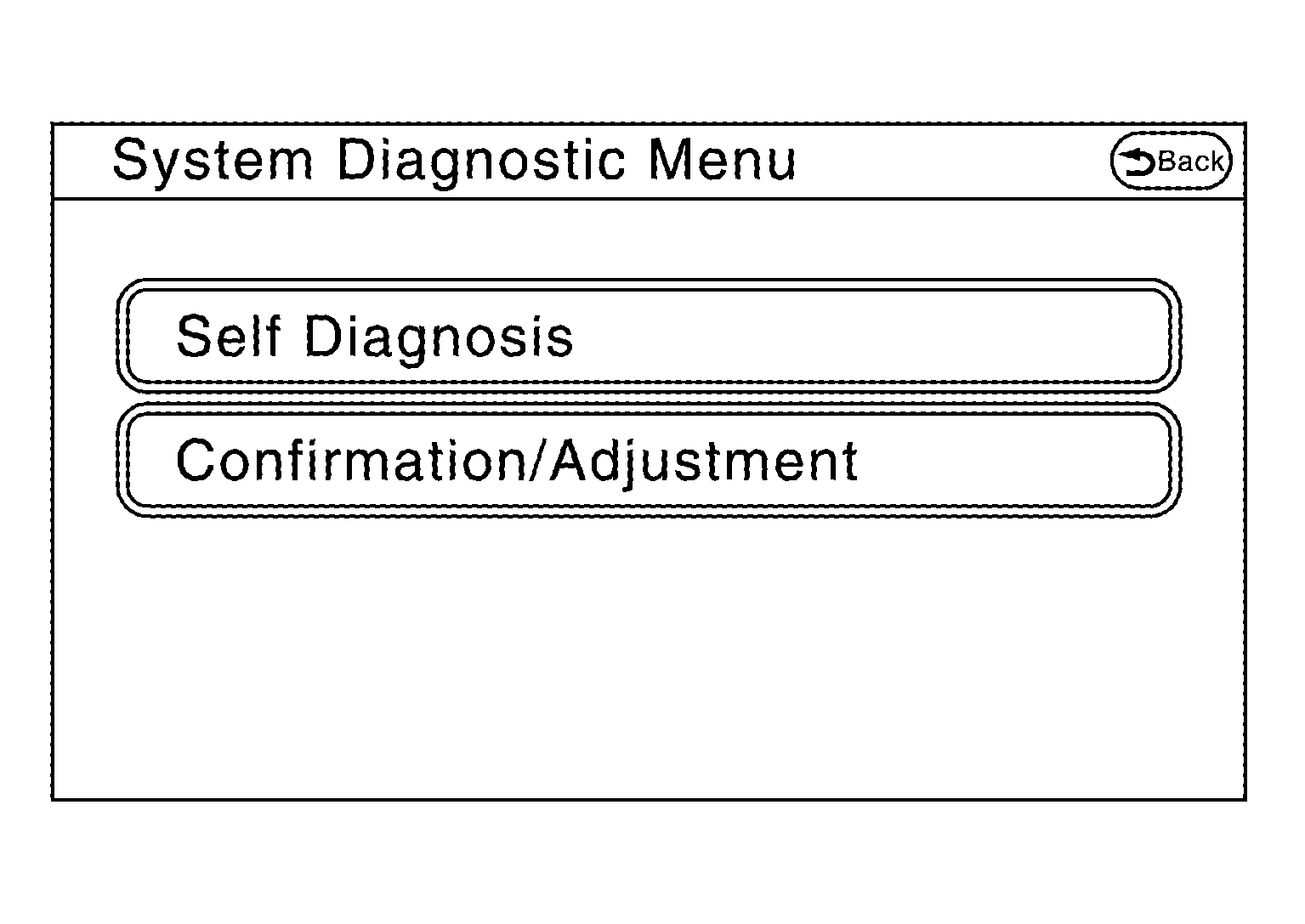

The initial trouble diagnosis screen displays two choices: "Self-Diagnosis" and "Confirmation/Adjustment".

Fig 2: Display Initial Trouble Diagnosis Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
