Names and functions of AV control unit switches

1. Design

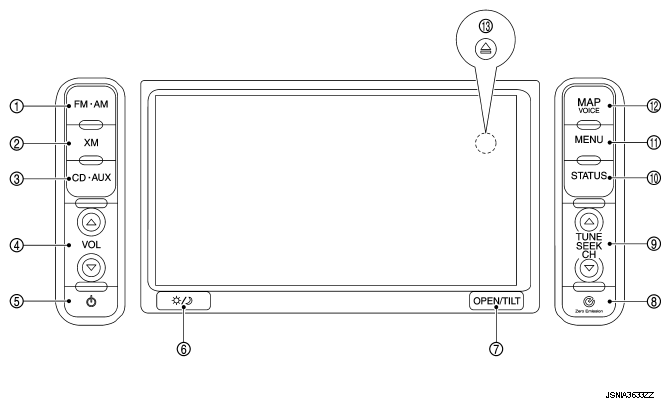

   Fig 1: Design Of AV Control Unit Switches

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Switch name and function
   SWITCH NAME AND FUNCTION



   No.	Switch name	Function
   1	FM.AM	Press to switch between the FM radio band and the AM radio band.
   2	XM	Press to switch to an XM satellite radio band.
   3	CD.AUX	Press to switch between USB memory/iPod player(1)/CD/Bluetooth® streaming audio(2) /AUX screens.
   4	VOL (volume control)	Press to adjust the volume of the stereo.
   5	(audio system ON:OFF)	Press to turn the audio system ON or OFF.
   6	/(Day/Night)	Press to switch between the day screen (bright) and the night screen (dark). Press and hold to turn off the display, then press again to turn on the display.
   7	OPEN/TILT	Press to open the monitor to access the CD slot and the SD card slot. Press and hold to adjust the monitor angle. (6 angles)
   8	(Zero emission)	Press to display the setting screen where several useful functions for electric vehicle driving are determined.
   9	TUNE/SEEK/CH	Press to select a track/station. Press and hold to search for a track/station automatically or to fast-forward/back-forward when listening to music.
   10	STATUS	Press to display the current status of the air conditioner, radio, audio, vehicle information (estimated distance, drivable distance and average energy economy) and navigation systems.
   11	MENU	Press to display the setting menu (destination, route, information, settings, phone and carwings) screen.
   12	MAP/VOICE	Press to display the current location map screen. Press and hold to repeat voice guidance.
   13	(Disk eject)	Press to eject a disk.
   (1) Displayed when iPod® is connected. (2) Displayed when Bluetooth® audio is registered and "Bluetooth connection" setting is ON.

Names and functions of steering switch

By using the steering switch, various operations on the audio, navigation, telephone, and others can be performed without releasing hands from the steering wheel.

1. Design

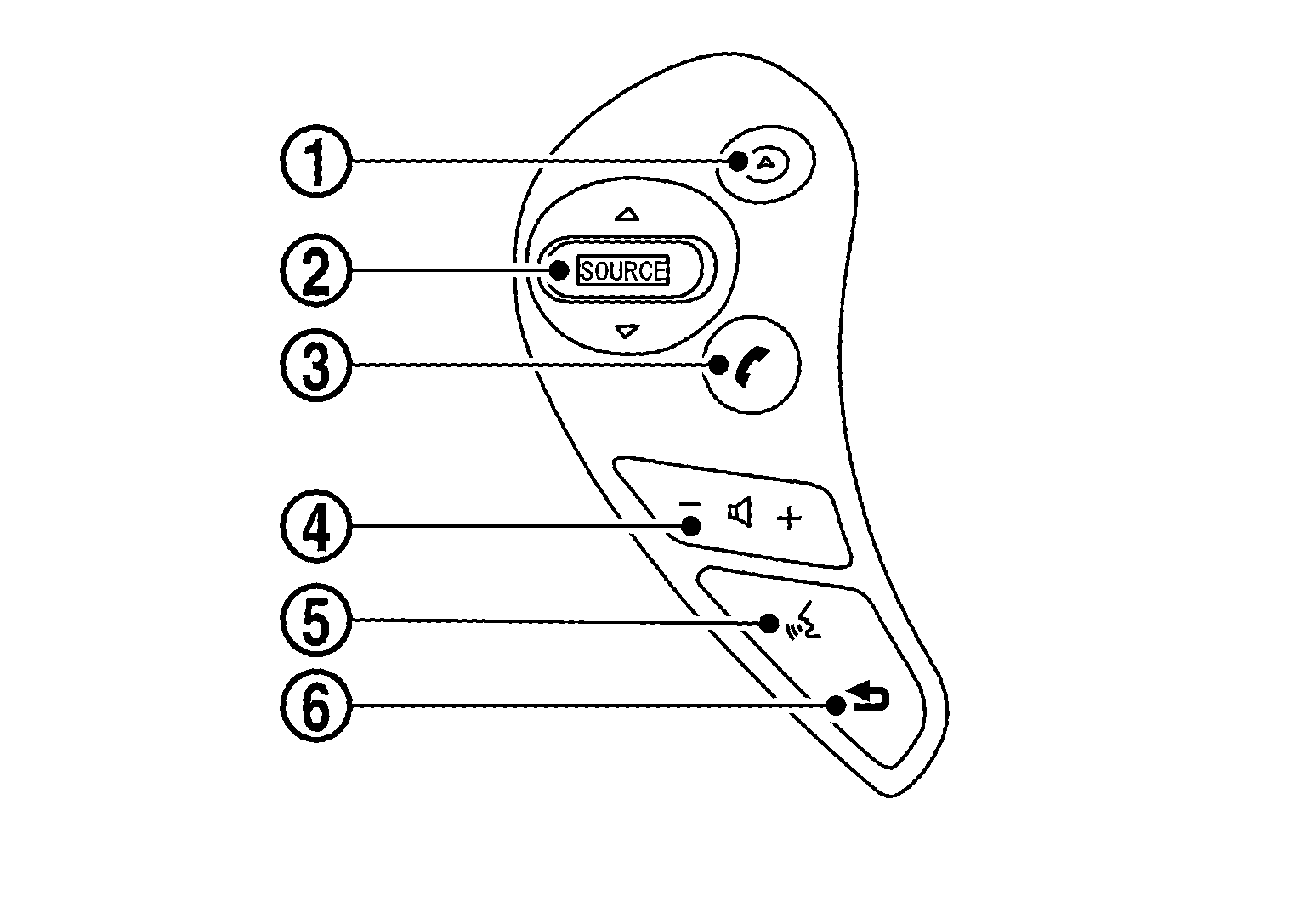

   Fig 2: Design Of Functions Of Steering Switch

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Switch name and function
   SWITCH NAME AND FUNCTIONS



   No.	switch name	Major functions
   1	(Driving range)	Press to display the driving range screen. Press again to return to the previous screen.
   2	SOURCE	Press to change source menu.
   		Tilt up/down for a short period of time	During the radio switches the preset channel. During the CD mode, USB mode, iPod mode, and Bluetooth audio mode selects the track.
   		Tilt up/down for a long period of time	During the radio mode, good sensitivity frequency is automatically selected. The CD mode, iPod mode, or Bluetooth audio mode allows the fast-forwarding and rewinding of a music file. During the CD mode, a folder selection can be made when an MP3/WMA disc contains a folder. The USB mode allows folder selection.
   3	(Phone)	Displays the hands-free phone menu. When this is pressed during call, telephone communication can be started.
   4	- + (Volume control)	Adjust the audio volume. Other than the audio volume, the volume levels of guide sound (at guide interruption), handsfree phone, and others can be adjusted.
   5	(Talk)	Press to enter the voice recognition mode.
   6	(Cancel)	Press to cancel the voice command.
