Exploded View: Disassembly

Type: S114-932

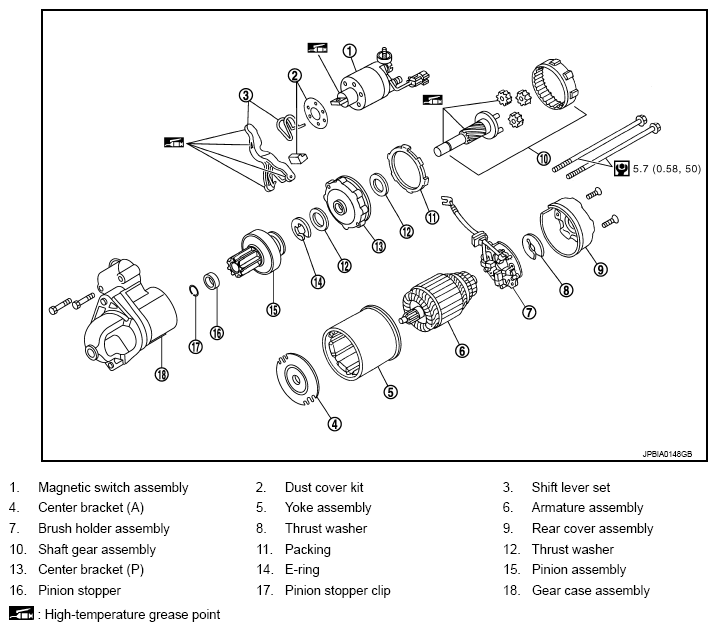

Fig 1: Disassembled View Of Starter Motor With Torque Specifications
G08237569Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
